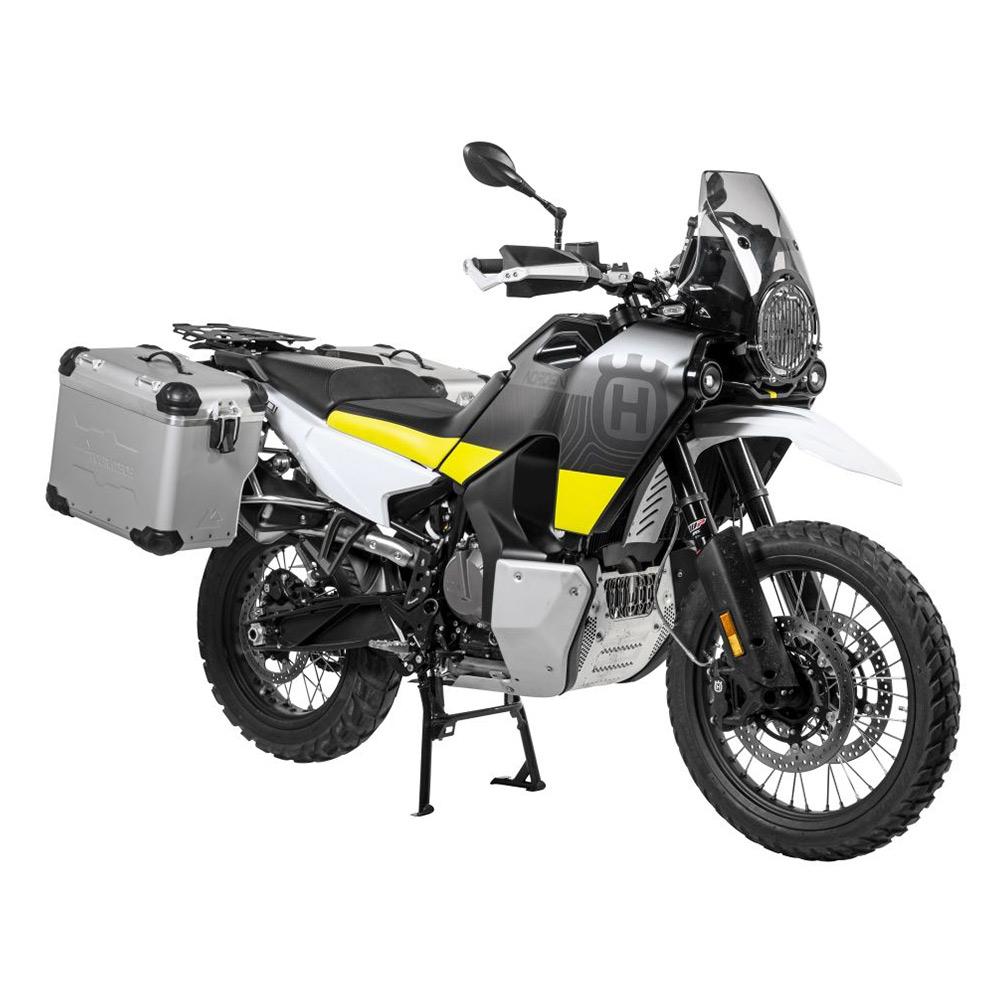

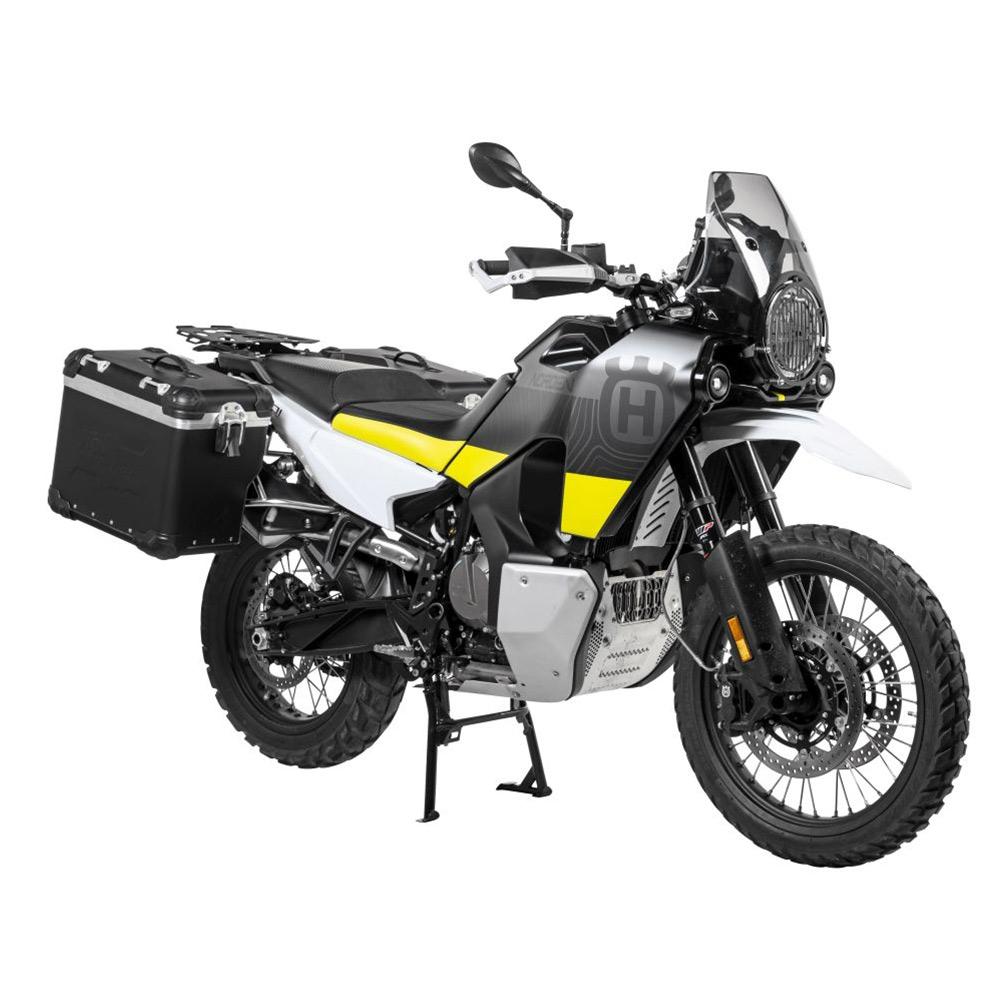

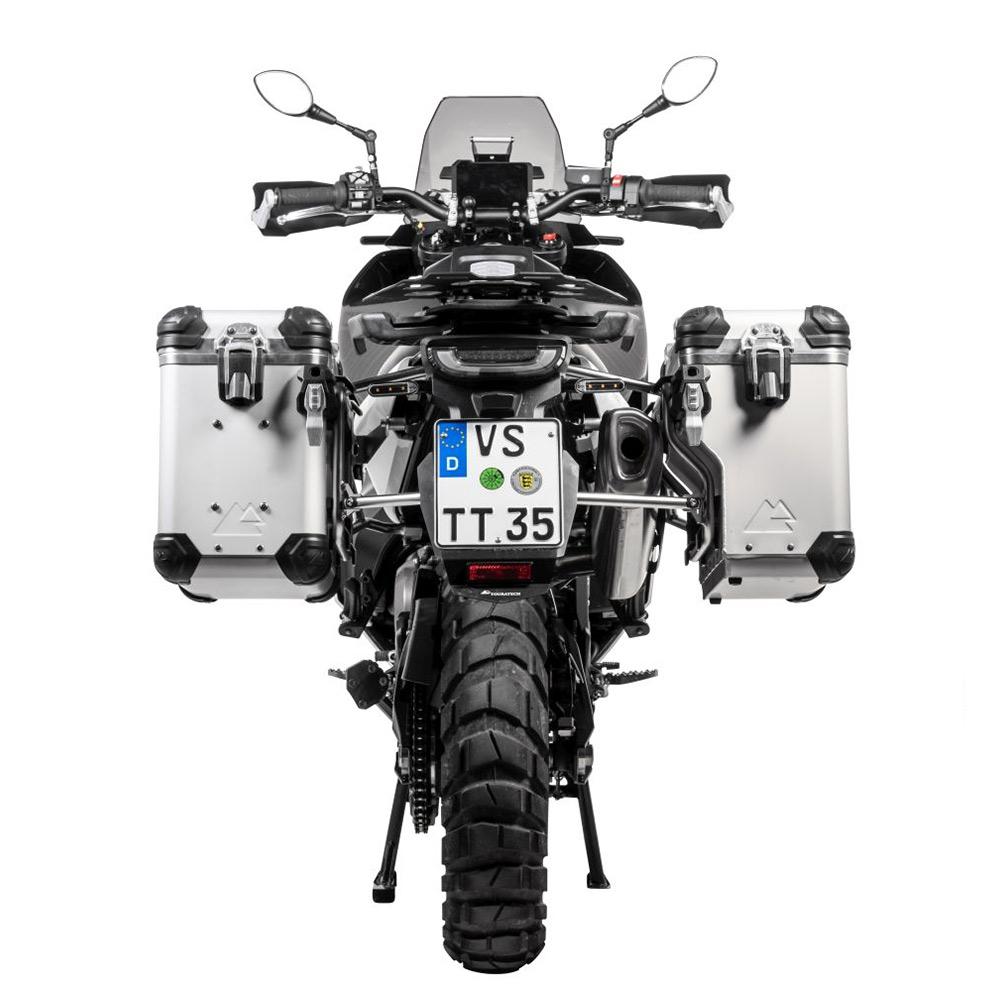

Evolution! Touratech goes one step further and develops these case systems: Zega EVO X in particular for those bikes with the exhaust pipe on the right side, such as the Husqvarna Norden 901. An excellent combination of robustness with extra light handling and easy to use thanks to the newly designed attachment system.
More info
The zega EVO 'X' case system is a different version of the Zega EVO quick-locking system consisting of the design of the a suitcase with cutout for the exhaust on the right side. This allows the use of cases with the same dimensions and capacities on both sides, while reducing the overall width of the motorcycle with the cases on. This offers greater storage capacity, because it does not shrink, and a symmetrical appearance, in addition to the other features that make Zega EVO the market leader in motorcycle hard cases.
The Zega Evo X combines the robustness proven over many decades with an added bonus of comfortable handling - and is the perfect choice for the most demanding customersthanks to a completely new fastening system. The Zega Evo is attached to the luggage carrier with aabsolute stability, even when driving off-road! Thus, it combines aoptimal ergonomics with absolute comfort, without having to compromise on reliability.
The rounded contours of the gripping systems conform to the fingers and allow the release mechanism tois easy to operate allowing for a simple and smooth case attachment/detachment motion. Simply slide the hooks into your motorcycle's luggage rack, push the case all the way in and close the lever to ensure proper attachment of the case. To remove it from the bike, simply pull the clamping lever and lift the case out of its holder. The mechanism also works under difficult conditions: dirt, sand, mud, etc.
The aluminum cases of Touratech, the case is composed of 3 parts that make up the entire case. These are the lid and the base, which are joined to the case walls by means of rivets and a seal that makes them totally watertight. They are not welded, but are a single 1.5 mm thick aluminum plate in the body, lid and base of the case. This feature, withthe absence of welding points gives the side case total resistance and makes them indestructible.
Between the casing and the bottom there is a solid joint which is secured by special waterproof rivets. The cover features a tongue and groove profile with aintegrated silicone gasket ensures absolutely watertight sealing.
The cover and the base are now manufactured with adeep drawing manufacturing method,eliminating welded joints. The body and base are secured bystainless steel rivetsTested and sealed with silicone gaskets.
Thenew development ventilationEnsures that the case is not subjected to as much pressure when the altitude varies. This allows you to open a closed case in a valley even over the highest mountain pass on your route.
The plastic side corners on the Zega PRO and Zega EVO models are attached to the outside of the case, unlike other models in the industry where they are attached to the outside of the casethe corners are parts of the case structure.
In the new cover closures, we have retained the popular hinge function, which allows thethe cover can be opened from both sides or even removed completely.
The Zega Evo is already equipped with practical attachment pins for accessories. Therefore, you can easily attach the special ZEGA Evo accessory holders without having to drill holes in your new cases.
Inside the suitcase we can finda connecting cable from the inner wall to the suitcase lid that secures the suitcase lid to prevent it from getting lost. This cable can be easily removed, if desired.
As with the predecessor versions, the well-established stainless steel fastening eyelets are fitted as standard on the lid for securely attaching special case lid bags or other objects to your Zega Evo.
The case is easy to carry thanks to its carrying handle, made of industrial nylon, facilitating the transport of the case.
As for the finish, the Zega EVO cases from Touratech is available atsilver anodized and black anodized. This is an electrochemical process, whichprevents oxidation of the material,And therefore the ugly gray stains that can occur on aluminum as a result of oxidation.
To this process, some additives are added to color the material. Unlike painting the surface of the suitcase, when painting thechange the color of the material the surface is much more resistant to small scratches that we can easily see in the cases in natural aluminum or painted in black.
Atsilver or black anodized, the new Zega Evo once again sets a new design benchmark among high-quality luggage solutions. The newly designed rounded plastic corners are not only a decorative element. In the event of an accident, in addition to protecting the case itself, they also protect the rider.
Touratech has revolutionized ergonomics and estheticsOf the Zega Evo side cases by means of thedevelopment of a new die-cutting technologyThatcreates rounded contours, which makes therelease mechanism is easy to put on and take off,And as a result we have superior convenience. Simply slide the hooks into the luggage carrier of your vehicle BMW, push the case all the way in and pull the lever to secure the case
This system integrates thehigh-strength stainless steel pallet carrierWhich has earned a reputation as a highly durable product from travelers around the world. The 18 mm tubes are manufactured using arobotically welded construction.Zega Evo frames follow a long tradition of strength and durability. The system comes with all hardware and everything needed for installation in one package.
Theadditional storageOn the top of the cover is facilitated with thealuminum lashing loopsForged in theFour cornersOf the lid. StorageinsideOf the cover is thanks to theintegrated tie-down loops inside cornersThat take advantage of the unused space in most saddlebags.
ThelidHas aedge aluminum resistantTongue and groove with an integrated silicone seal that makes acompletely waterproof seal. The case is equipped with a waterproof vent that relieves pressure when changing elevation, such as when passing over a mountain pass.
Anothercharacteristic feature of the Zega Evo is its new embossed shape,following the style of the brand Touratech. Thecorner protectionHas also beenrenewedFor a modern look with aimproved ergonomic gripAnd an off-motorcycle riding feel.
TheMounting pinsOf integrated accessories comepreinstalledWith the Zega Evo, so that they can beAdd accessories without drillingThe suitcases. TheLegendary range of accessoriesFor the aluminum cases of Touratech, increases your storageFor fuel cans, water bottles and other options.
You can open the suitcasefrom anywhereForfacilitate accessOr even extinguish the cover with thedouble-hinged latches. The Zega Evo system comes with aremovable strapWhich is used to avoid losing a cover while on the move.
More details
✓ Aluminum sheet 1.5 millimeters thick.
✓ Available in silver or black anodized version.
✓ Riveted body and base.
✓ Recessed cover and base.
✓ Robust lid profile with silicone gasket.
✓ Impact-resistant corner reinforcements.
✓ Recessed webbing carrying handle.
✓ New ergonomic fasteners.
✓ Fasteners with additional hinge function.
✓ New easily removable lid safety strap.
✓ Improved ventilation.
✓ Completely new mounting and locking mechanism.
✓ Extension of the equipment with fixing rings.
✓ Quick-mount convenience for easy attachment or detachment of panniers.
✓ Locking design secures suitcases and contents to prevent theft or tampering
✓ Easy-to-operate latches with ergonomic press-forged release mechanism
✓ Accessory-ready with pre-installed attachment pins for a variety of mountings
✓ Modern design with embossed style accents that also add strength
✓ Easy-access lid hinged on both sides or removable
✓ Waterproof storage with deep channel aluminum rim and silicone gasket
✓ Ergonomic handles for easy transport off the bike
✓ Two sizes available 38/38 and 45/45 liters.
Total width: 95 cm (38L) and 103 cm (45L).
Note: Please include in your order theset of locks for both Zega Evo cases (not included in the scope of delivery). Order No. 01-050-6000-0
Delivery components:
1x Luggage carrier
1x Suitcase Zega Evo
1x Zega Evo special case with cutout
Cases are available in Black or Silver finish
Volume of suitcases (according to your choice)
Left suitcase: 45L or 38L
Right suitcase with cutout: 40.5L or 33.5L
Total width of the Zega Evo X system
Set of 45L suitcases: 106 cm
38L suitcase set: 101 cm
