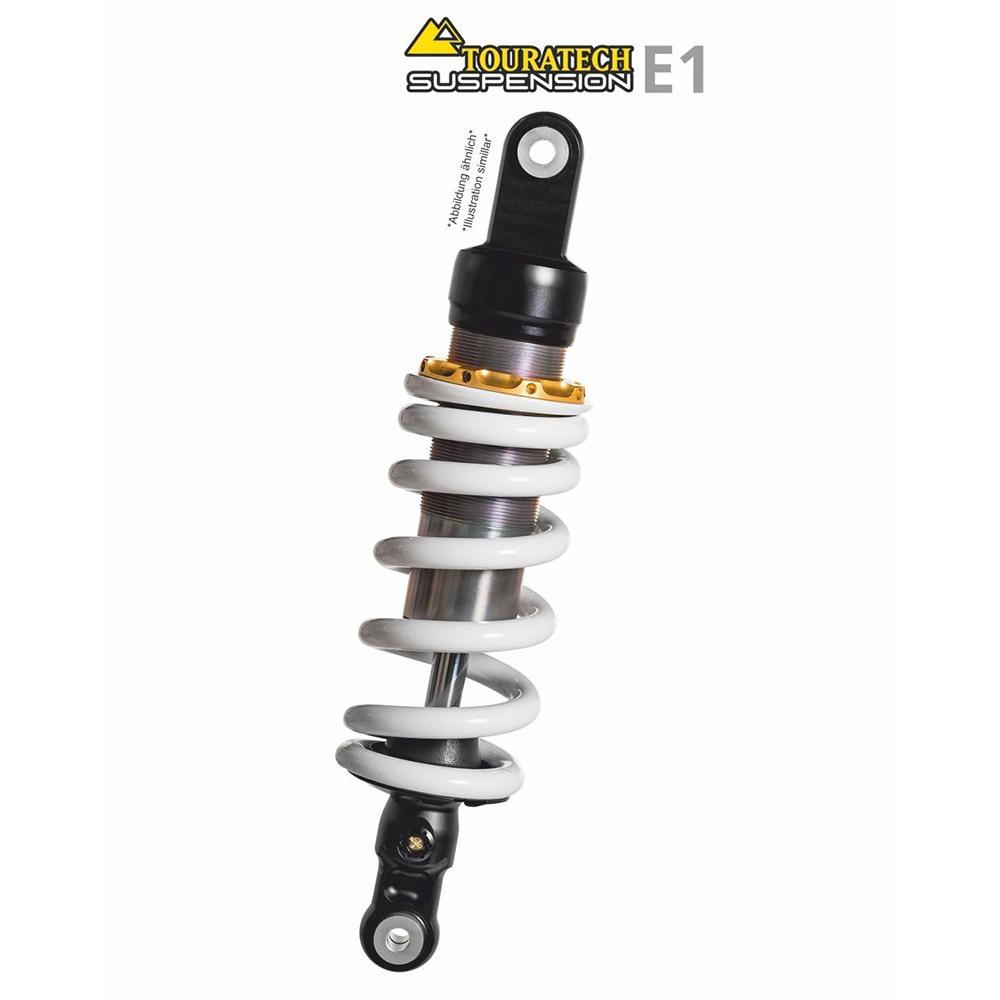

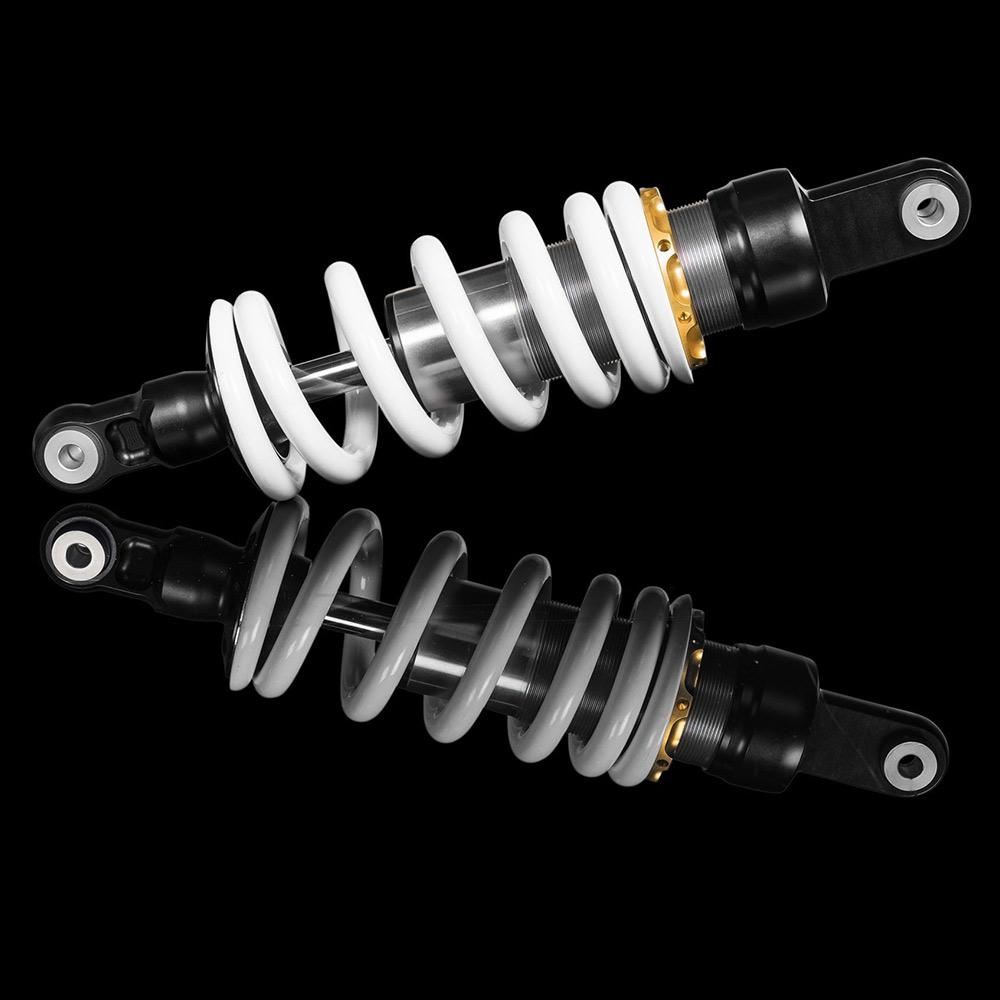

Shock absorber Touratech Suspension E1 for Suzuki SV 650 (with ABS), SV 650 XA (2016-2020)

Touratech E1 Monoshock Suspension for Suzuki SV 650 (with ABS), SV 650 XA (2016-2020)

When it comes to Touratech Suspension, E1 is synonymous with robust and well thought-out product at a fair price. Following a slim design, the very solidly designed emulsion shock absorber dispenses with an external expansion tank. The rebound damping can be adjusted very finely over a wide range of 50 clicks. Thanks to their progressive spring, the E1 series dampers offer a smooth response with high reserves against bottoming out at the same time. The spring preload can be adjusted manually, a hydraulic spring preload is available on request.

The E1 range are conventional shock absorbers, without external reservoir. Manual preload and rebound adjustments. Their main function: Spring movement is damped according to the preselected manual setting. Vehicle balance is established by spring preload.

As a replacement for the original components, these high-quality spring elements guarantee excellent suspension performance. Following intensive test drives, the E1 shock absorbers have been individually configured to suit your particular motorcycle. This means that high-speed stability is improved and load changes that occur during sporty cornering are minimized. The wide adjustment range allows perfect balance and damping adjustment for a wide variety of uses, from sporty rides to weekend leisure rides and vacation trips. Whether you ride on highways or smaller country roads, with a partner or alone, E1 Series shocks allow for a whole new experience in driving dynamics, safety and precision .

Shock Features Touratech Shock absorber E1 Suspension for Suzuki SV 650 (with ABS), SV 650 XA (2016-2020)

✓ Shock absorber Touratech Suspension with gas/oil emulsion design

✓ Adjustable spring preload -Adjustable rebound damping with 50 clicks

✓ Black coated continuous progressive spring

✓ Piston rod made of chrome-molybdenum steel, ø 16 mm

✓ Shock absorber piston ø 36 mm

✓ Generously dimensioned shock absorber tube

✓ Constant damping even under heavy-duty conditions

✓ High-quality finish

✓ With GOP

Scope of delivery:
✓ Shock absorber Touratech Suspension E1 ready to install
✓ Adjustment tool
✓ GOP documents (online)
✓ Installation instructions

We recommend having the shock absorber converted and installed by a specialist workshop.
Tip: Optimal riding dynamics and riding safety can only be achieved with a suspension upgrade at both the rear and front of your motorcycle.
