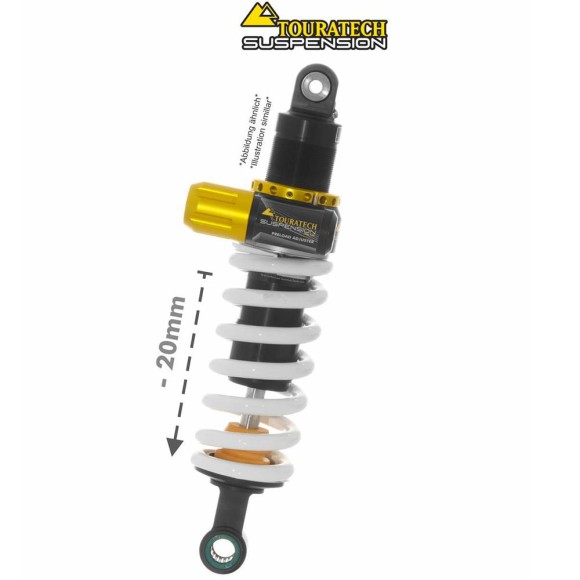

Shock absorber Touratech Suspension (-20 mm) for Triumph Tiger 900 Rallye Pro from 2020 Type Explore HP / PDSTouratech Suspension

This shock absorber is perfect for lowering the seat height (-20mm) on the Triumph Tiger 900 Rallye Pro. Your Triumph Tiger 900 Rallye Pro stays well tuned and is ideal for touring use.

The ExploreHP / PDS emulsion shock can be adjusted via a handwheel that adjusts the preload of the hydraulic spring to suit the load of large touring luggage.

Its compact design also houses our PDS system. This provides hydraulic protection that prevents bottoming out even when carrying full touring gear in the most extreme off-road conditions.

The shock absorber is protected against mechanical overload. The damping characteristics change according to the road surface.

In most riding conditions, the shock absorber provides smooth response and adjusts comfortably for less strenuous riding.

Key features:

- The shock is set up based on our experience with the Triumph Tiger 900 Rallye Pro and is configured "ready to ride".

- Parameters include vehicle weight / shock pivot / build conditions / test rides.

- The shock absorber described here is designed for up to 100 kg rider weight including travel luggage.

- The front and rear sections of the motorcycle must be adjusted for all chassis solutions.

- If only one component is changed, optimum handling will not be achieved.

IMPORTANT: We strongly recommend not to slide the fork tubes up into the fork clamp. This has an extremely adverse effect on the handling of the motorcycle.

Please note:

To ensure the parked stability of your Triumph Tiger 900 Rallye Pro after it has been lowered, we recommend that you use a shorter stand and/or the center stand.

Scope of delivery:

- Shock absorber ready to mount -20mm

- General operating license

- Mounting instructions / user manual

The basic configuration installed here is designed for passengers with up to 100 kg of additional luggage. Modifications are possible for a heavier rider (over 100 kg) and / or if the bike is usually ridden with a passenger / with luggage. In this case, we individually modify the shock absorber to meet your needs. Please use our suspension control and send us the completed form.
