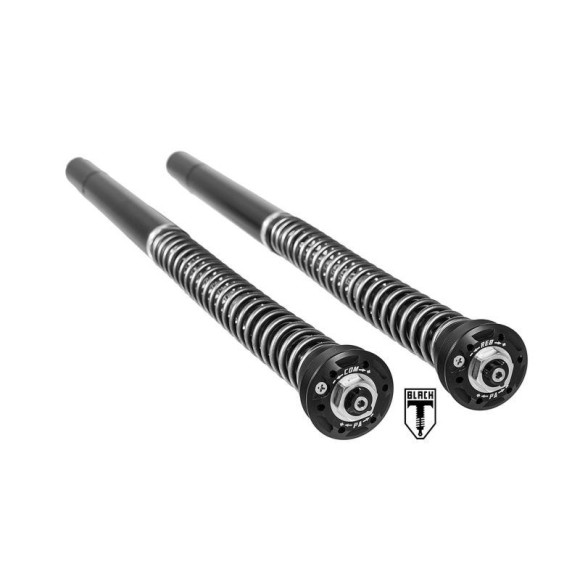

Black-T Stage4 Cartridge Kit for Triumph Thruxton-R (2016-2018)

The cartridge kit gives the Triumph Thruxton-R the best possible balance. Spring preload, rebound and compression are fully adjustable from above. The shock oil is in a closed cartridge, so the amount of oil is precisely metered, thus offering very precisely tuned damping.

They ensure a more efficient and precise suspension setting, adapted to your personal riding style at all times, whatever the road conditions or intended use. It doesn't matter whether it's freeways, back roads, smaller country roads or a fast and ambitious driving style. Even the most extreme road conditions on the front wheel are absorbed by the integrated "Hydraulic Endstop" system.

Technical features:

✓ The closed cartridge is installed in the original fork.

✓ Thus, the fork/handlebar bridge, brakes and wheel control and handlebar geometry are fully retained.

✓ No additional fork modifications are required

✓ The closed cartridge in the fork is an "Extreme" suspension shock.

✓ Fully adjustable upper spring preload (adjustment tool included with delivery) on both fork legs for optimal bike balance. 20mm through 12 clicks.

✓ Separately adjustable rebound damping 20 clicks (1 fork leg).

✓ Compression damping 20 clicks (1 fork leg) for damping.

✓ Precise damping adjustment for high damping frequency and high load (rough roads, offroad with luggage).

✓ High damping stability and robustness thanks to the use of a 35 mm piston.

✓ Closed design (Closed Cartridge): closed oil cartridge for damping and oil in the fork is for lubrication.

✓ Damping oil (cartridge) and nitrogen, in a nitrogen accumulator at the base of the cartridge.

✓ Extremely refined fork response behavior, while providing high durability and stability.

✓ Separation of oil and nitrogen prevents foaming and no stickslip in the fork.

✓ This means consistently high damping performance, even under the most extreme conditions.

✓ Prevents the fork from becoming solid. Each cartridge is provided with a "Hydraulic Endstop" against impacts.

Includes:

✓ 2x Enclosed cartridges.

✓Shock absorber adjustment, (1x) rebound stage, (1x) compression stage.

✓Spring preload via adjustment tool (2x).

✓ Adjustment tool.

✓ Readyfor assembly and ready to roll, with preassembled fork spring.

✓ 1liter of oil (for fork installation).

✓ 2x Fork protection stickers.

✓ User manual and installation instructions.
