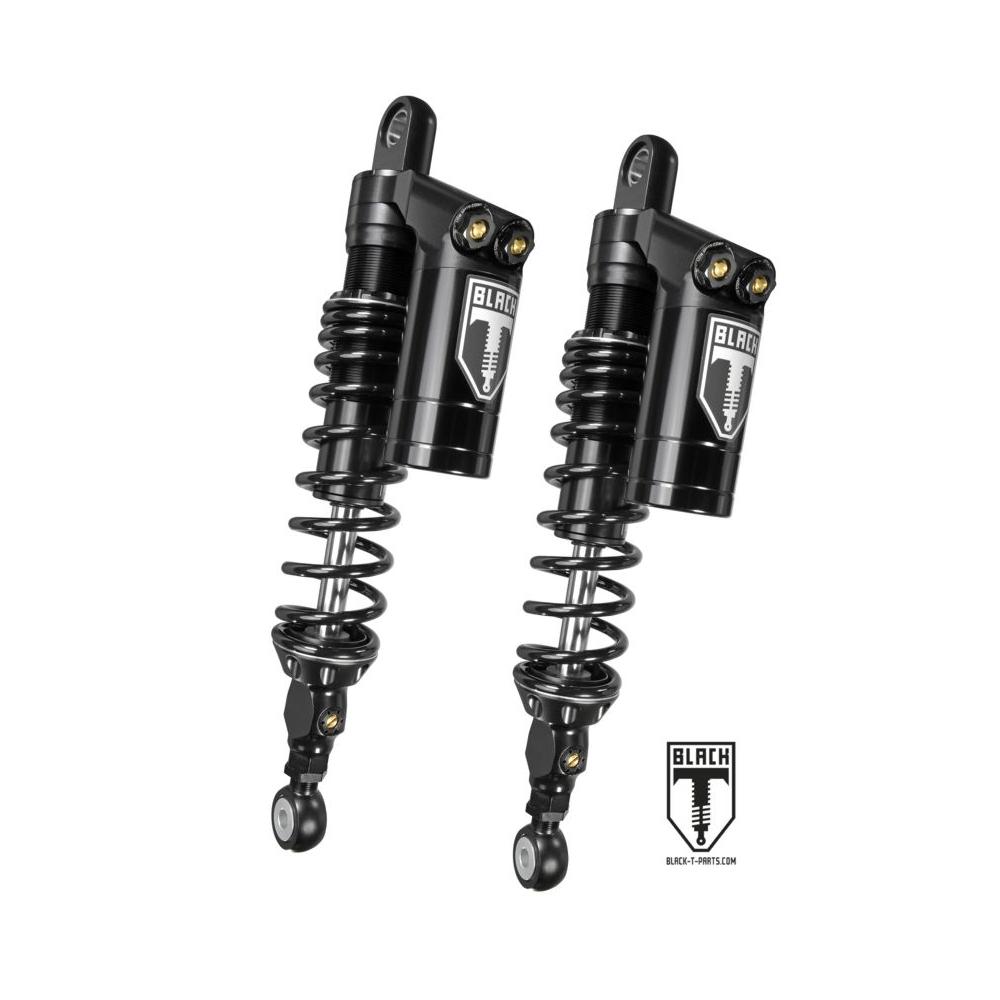

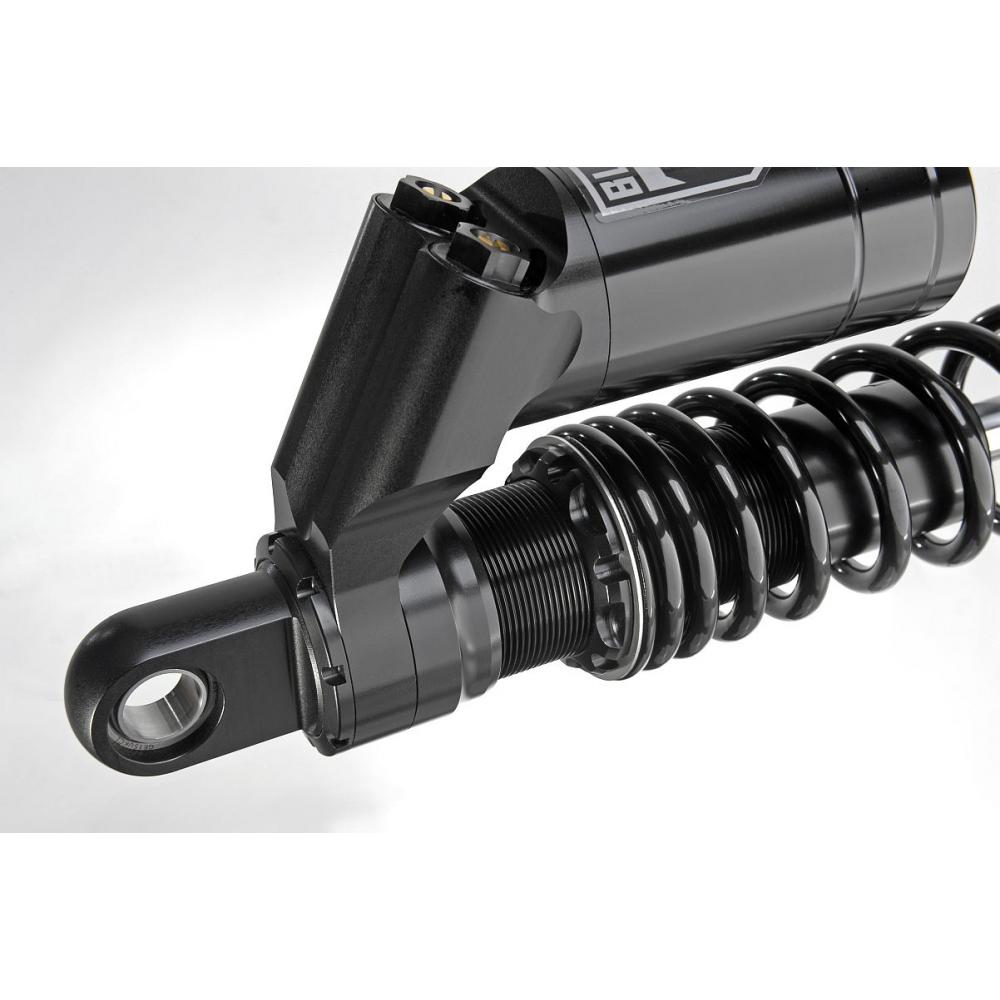

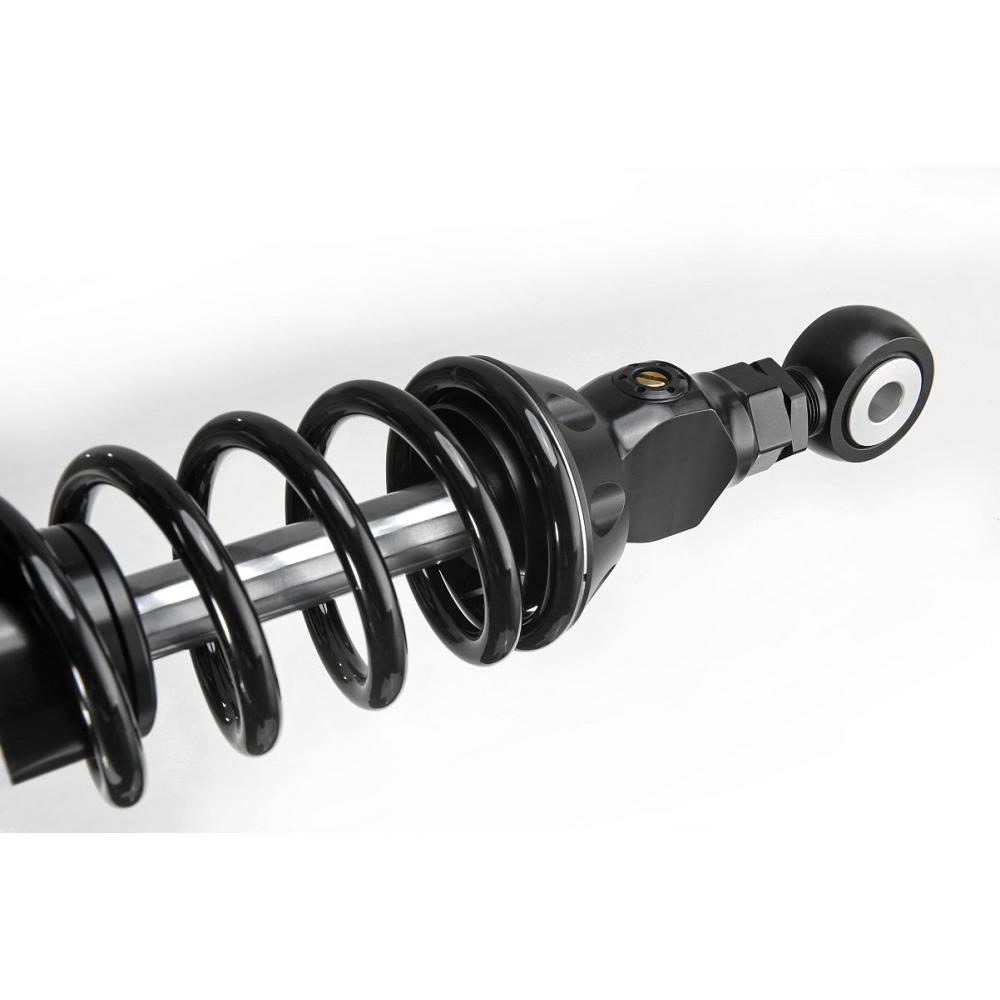

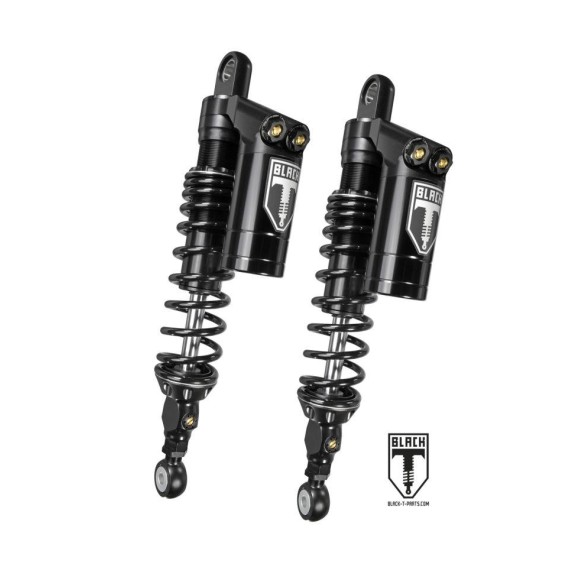

Black-T Stage3 Shock Absorber Set with Reservoir and Length Adjustment for Triumph Thruxton-R (2016-2018)

The Black-T Stage3 set of Black-T shocks is a real suspension upgrade for the Triumph Thruxton-R. The Black-T hydraulic spring preload allows easy and precise adjustment of the motorcycle's balance to your needs.

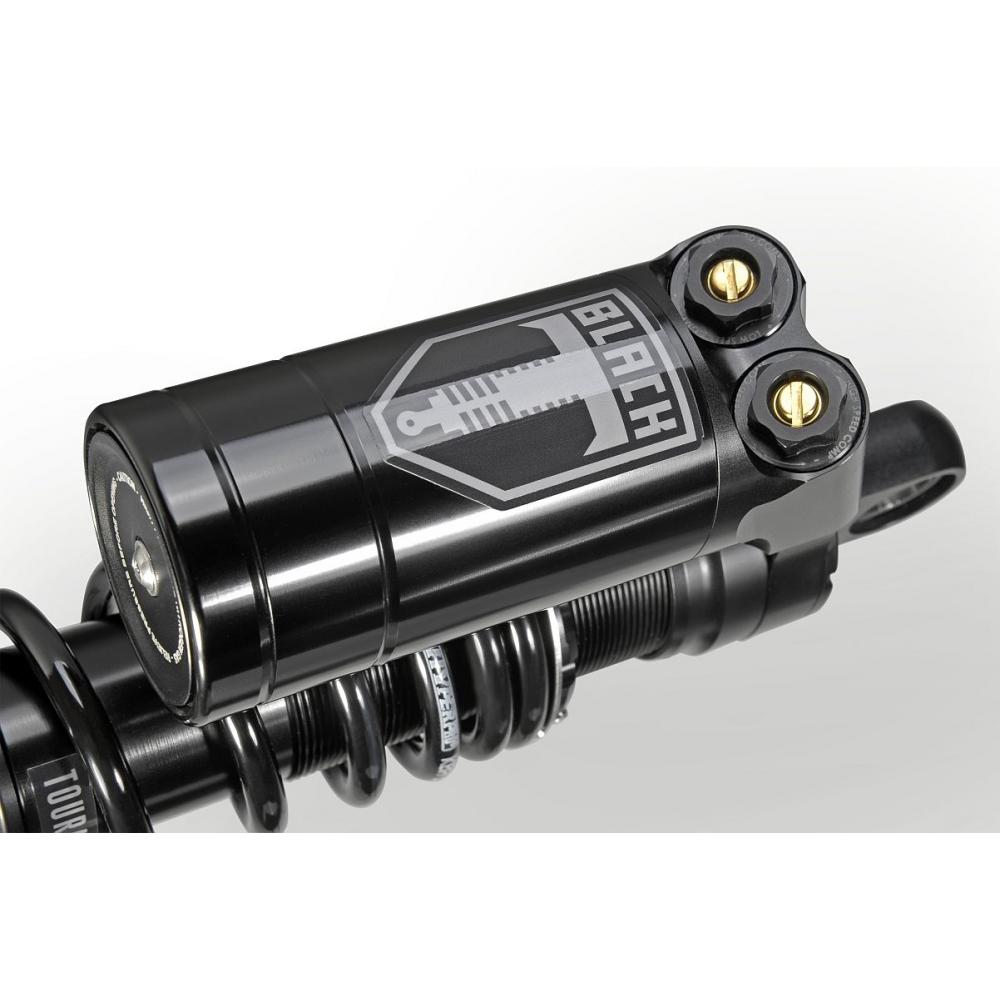

Stage3 shock absorber expansion tank allows for the powerful split piston design. Separate rebound and compression stage adjustability completes the high-end fine tuning. No matter what the route or riding style. A completely new and dynamic riding experience for your Triumph Thruxton-R.

Features

General

✓ The shock absorber is configured according to the experience Touratech for the Triumph Thruxton-R and is ready to install.

✓ Parameters are: vehicle weight / shock absorber articulation / structural conditions / ride testing.

✓ The rear and front areas of the motorcycle must accommodate all suspension solutions.

Techniques

✓ 2x Black-T shock absorbers in gas / oil - separating piston design.

✓ Spring preload can be adjusted with a tool.

✓ 50 clicks of adjustable rebound damping.

✓ Length adjustment +/- 5 mm.

✓ Black tip, infinitely progressive.

✓ Adjustable pressure level of 30 clicks.

✓ Adjustable pressure level in high and low speed.

✓ 16 mm piston rod.

✓ 36 mm piston diameter.

The basic configuration installed here is designed for riders up to 100 kg plus motorcycle clothing. Adjustments are possible for much higher payloads or other unusual requirements. We will then adapt the shock absorber individually to your needs.

Scope of delivery:

✓2 Black-T Stage3shock absorbers ready to install.

✓ ABE documents (online).

✓ Conversion and installation instructions.
