Touratech Suspension Cartridge Kit Touring for BMW RnineT

Simply put, the Touratech Suspension Cartridge Kit Touring is a shock tube for the fork and the ultimate expression of suspension technology. The Closed Cartridge is mounted on the original fork. This feature allows the original fork bridge/handlebar support, brakes, wheel guide and steering geometry to be retained. No additional fork modifications are required.

This Cartridge SET ensures a significantly more responsive and comfortable fork response for top level custom performance from the BMW RnineT.


Highlights:
The Cartridge KIT provides the best possible balance point for the BMW RnineT. Preload, rebound and compression are fully adjustable from the top end. The shock oil is contained in a closed cartridge, so that the amount of oil is precisely metered. The Closed Cartridge thus offers very precisely adjustable damping. This means that you can always adjust the suspension to your personal riding style with maximum precision and effectiveness for any type of road or riding situation. Regardless of whether it's on highways, secondary or country roads or a sporty driving style. The integrated "Hydraulic Endstop" more than absorbs any road irregularities that impact the front wheel, no matter how significant.

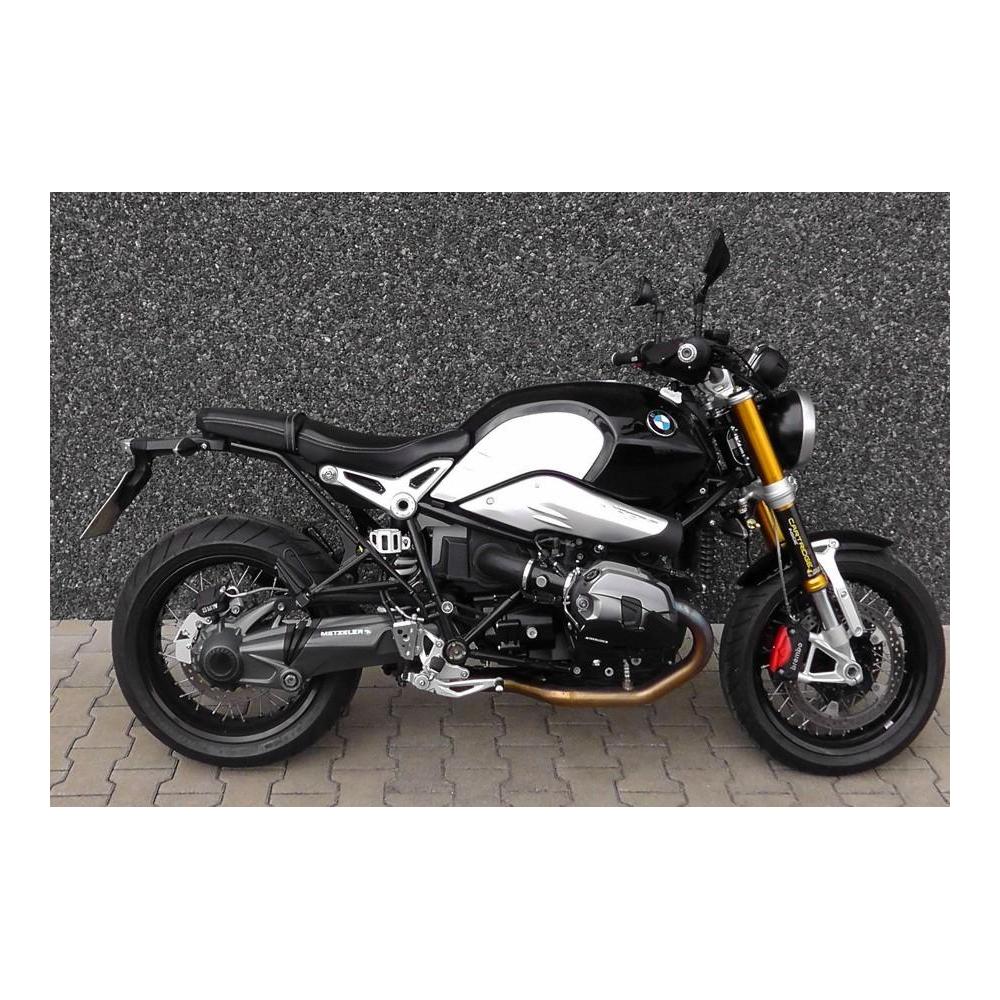

A completely new driving experience with your BMW RnineT .

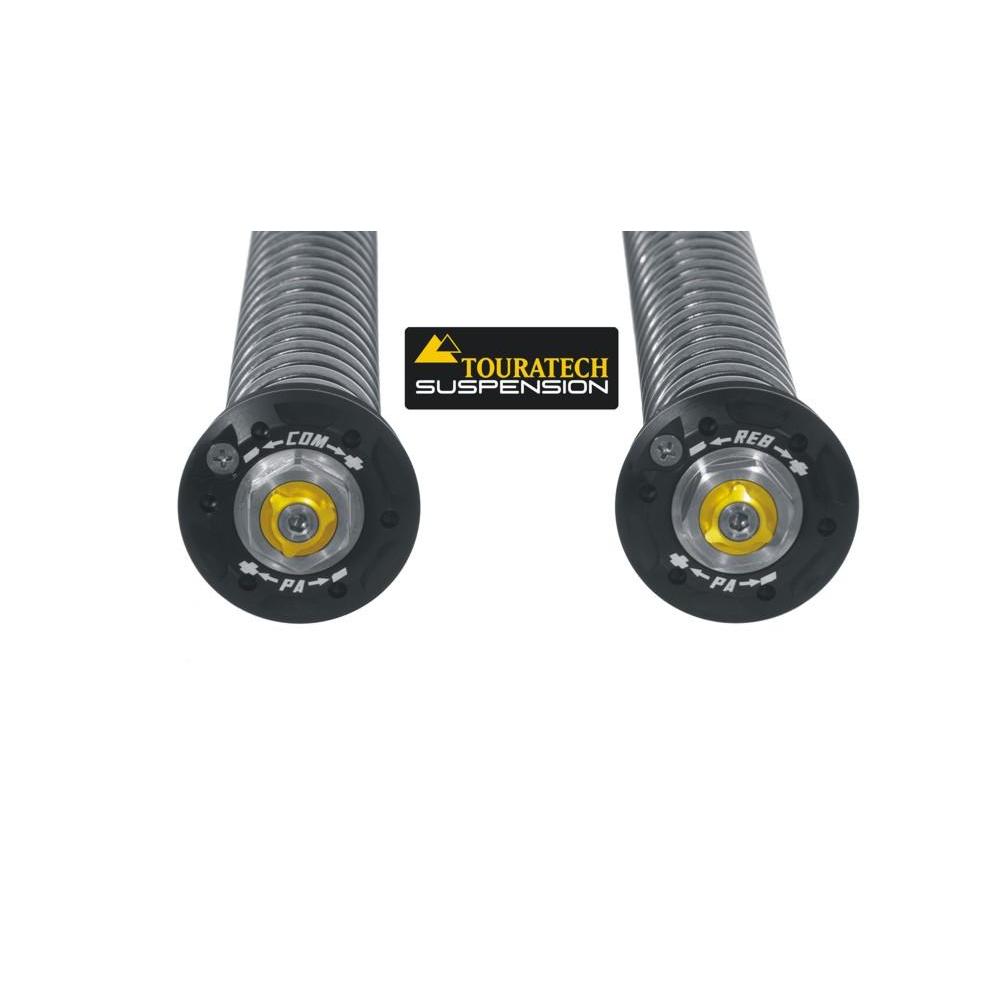

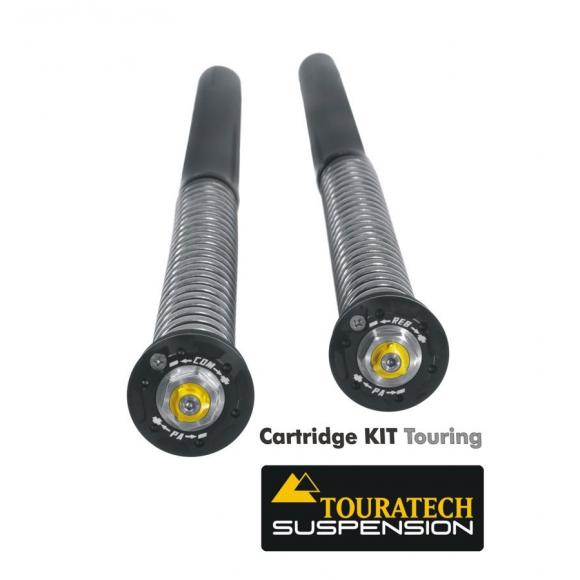

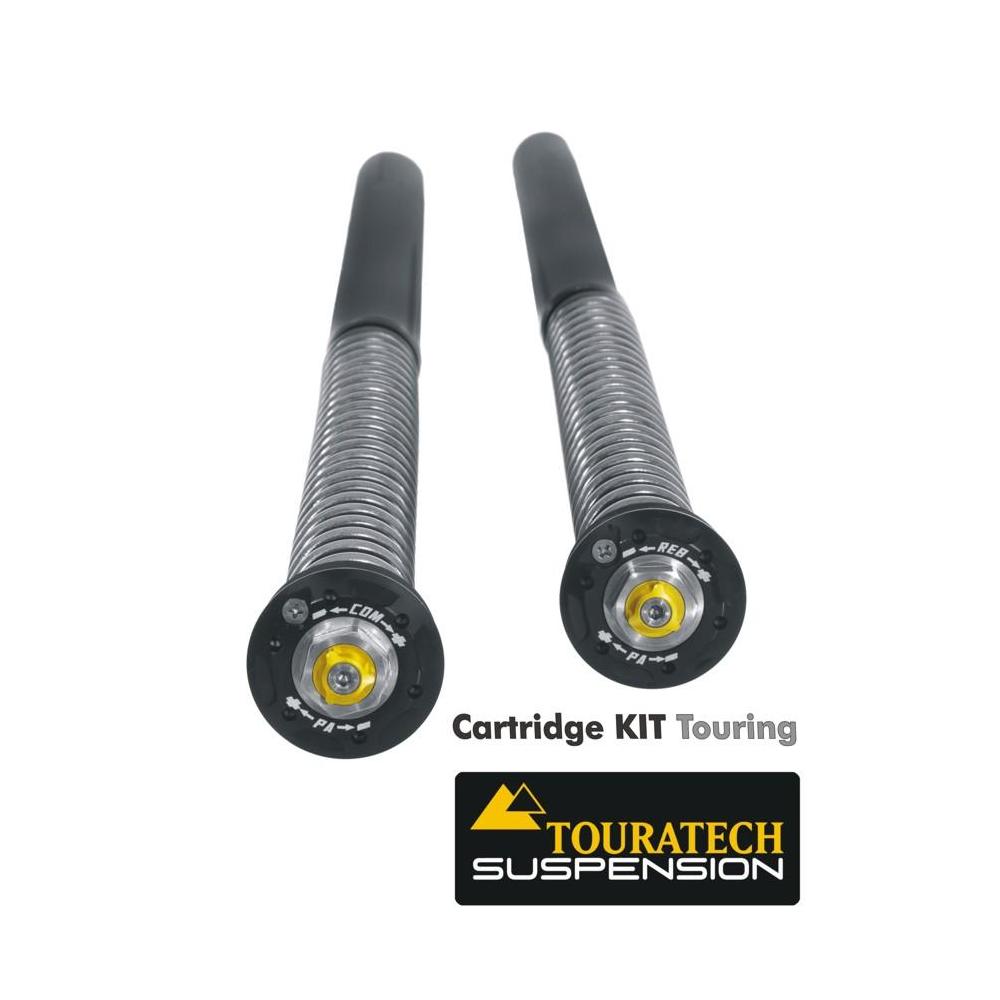

Features of the Touratech Suspension Closed Cartridge:
- The Closed Cartridge is mounted on the original fork.
Feature retains original fork bridge/handlebar support, brakes, wheel guide and steering geometry.
- No additional fork modifications required.
- 35mm diameter cartridge piston.
- Fully adjustable preload from the top (adjustment tool included in scope of delivery) on both bars
for optimal bike balance. 20 mm with 12 clicks.
- Independent rebound adjustment with 20 clicks (1 bar)
- Compression adjustment with 20 clicks (1 bar).
- For precise damping adjustment with very high damping frequency
- High damping stability and resistance thanks to a 35 mm piston.
- Closed construction (Closed Cartridge), i.e. the damping oil is in a closed cartridge.
- The oil in the fork is only for lubrication of the kit.
- Damping oil (cartridge) and nitrogen in a nitrogen capsule at the base of the cartridge,
- Provides very responsive response as well as exceptional fork stiffness and stability.
- Separation of oil and nitrogen prevents foaming and thus stick-slip effect in the fork.
- Unchanging shock performance at all times, even in extreme conditions.

The base setting is defined for demanding adventurers with luggage.
It is possible to adapt the kit to exceptional requirements. In this case we adapt the shock tube with a spring hardness to suit your personal requirements as well as other configurations.

Do you have any questions? We will be happy to advise you personally

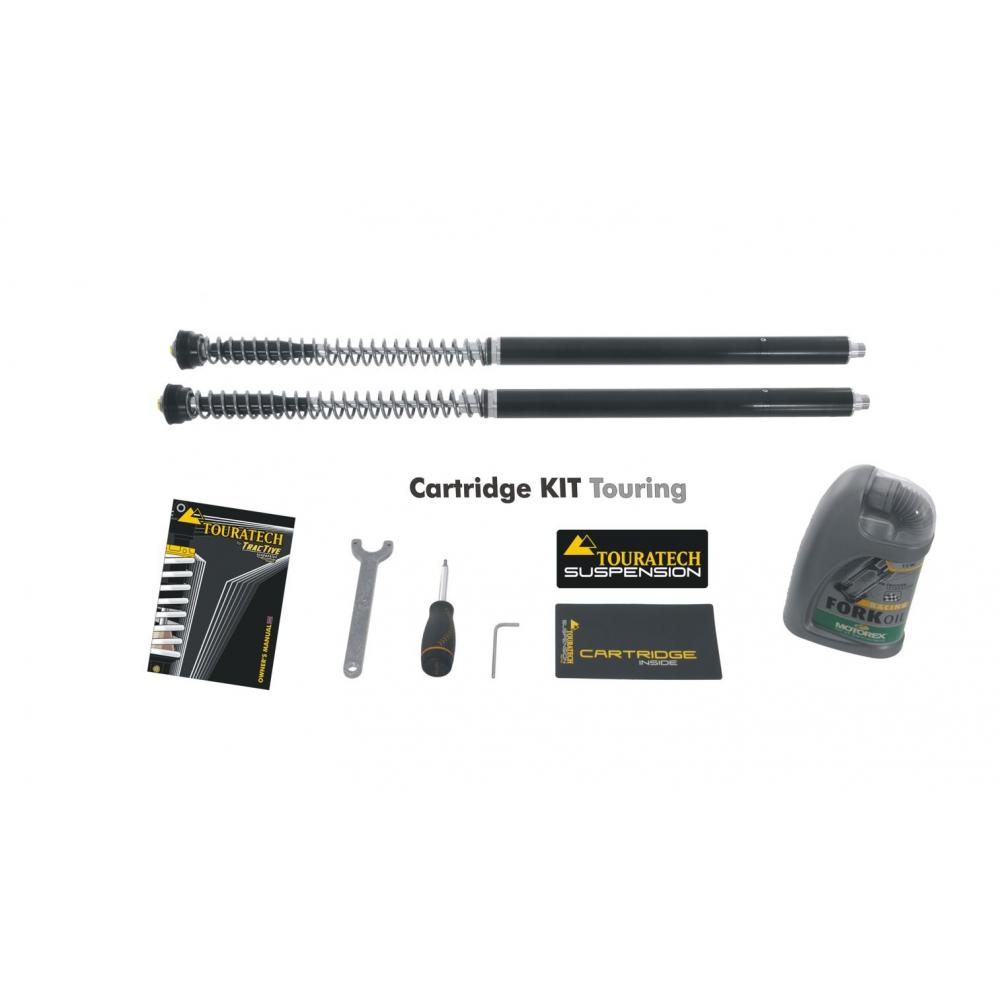

Scope of delivery:
- 2x Closed Cartridge
with damping adjustment, (1x) rebound, (1x) compression,
with preload adjustment (with 22 mm wrench)
- Damping adjustment tool
- Locking cap for mounting tool.
- Ready to mount and ride already filled with pre-assembled fork spring.
- 1 liter of oil (for fork assembly)
- User manual and assembly instructions
- 2x fork protection stickers.
