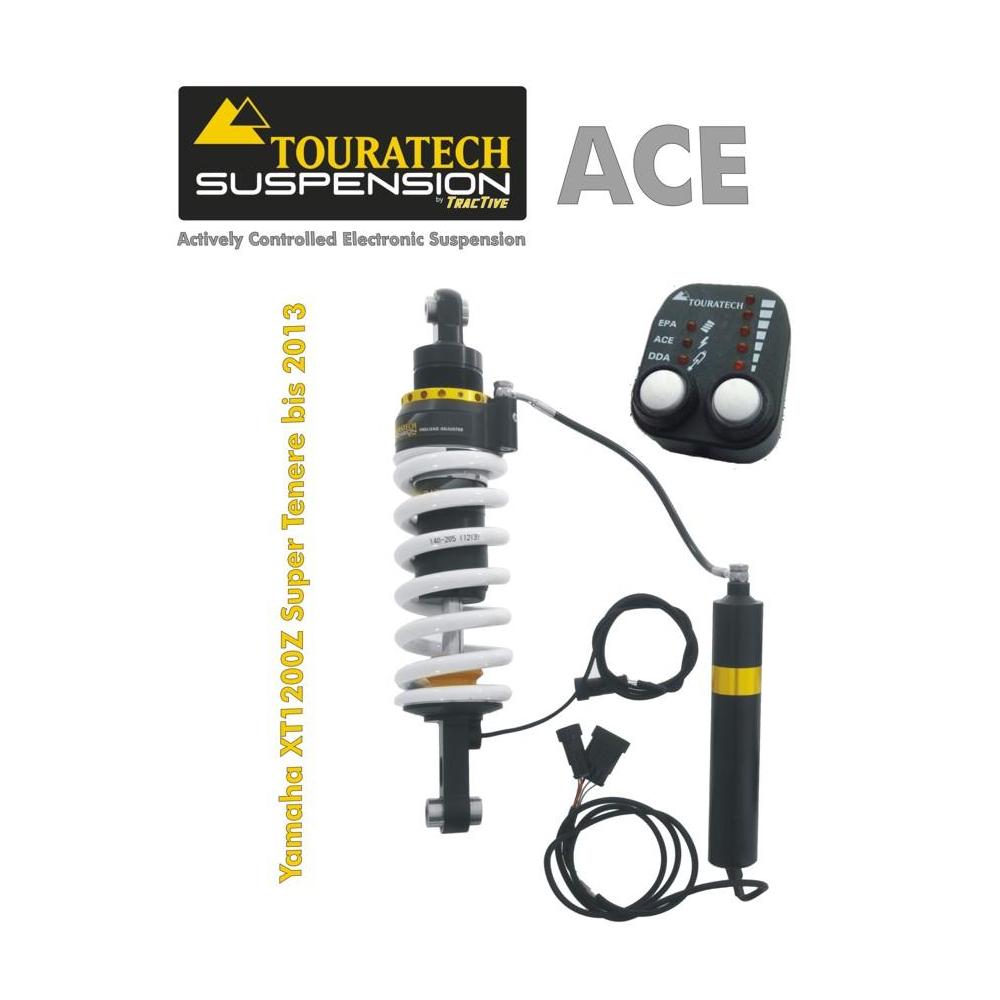

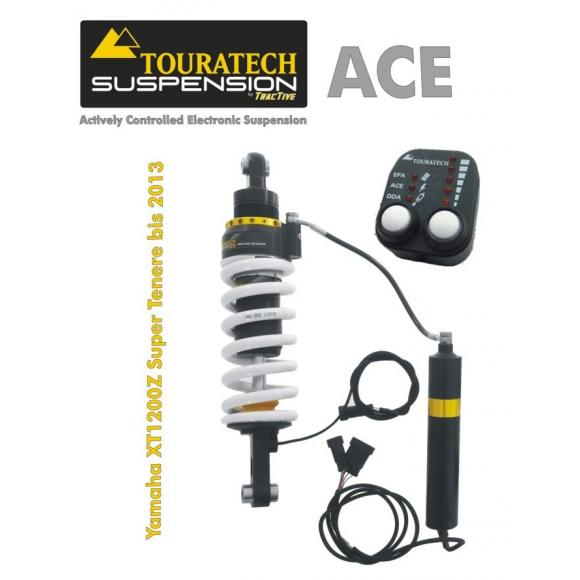

Shock absorber tube from Touratech Suspension ACE for Yamaha XT1200Z Super Tenere from year 2010 model Expedition

With the ACE suspension from Touratech Suspension you can adapt your motorcycle to every riding situation - efficiently, comfortably and without leaving the machine. With the remote control you can balance your motorcycle in the ideal way according to the load you are carrying and adjust the suspension to your individual conditions.
Smarter than ESA. The authors and manufacturers are the Tractive team, also inventors of ESA suspension.

ACE = Actively Controlled ElectronicSuspension

Not suitable for Yamaha XT1200ZE Super Tenere

With ACE suspension we have created a self-contained system with its own sensors. A patented, high-performance DDA solenoid valve is integrated into the shock tube and provides the complex values that allow the ACE sensor system in the control to respond to changing riding conditions.

The ACE suspension ensures that the initial elastic tension and damping value of your choice is always optimally and dynamically maintained within fractions of a second.

The rear suspension tube includes
- The EPA function (EPA=Electric-Preload Adjuster) The electric spring preload adjusts a preload range of +/- 15 mm via the remote control. This function compensates for the load on the motorcycle, e.g. when riding with heavy luggage and/or a co-driver. This makes it possible to restore the balance. The spring preload can also be adjusted quickly and easily while riding, e.g. when changing from a good fast road to a very bad country road. Pressing the button sensitively changes the balance of the motorcycle and thus the handling and response characteristics.
* The DDA (Dynamic Damping Adjustment) function with remote control on the handlebar. Adapt the riding comfort by means of the DDA dynamic damping adjustment in five levels, from comfortable to hard for sporty riding. Each push of the button adjusts the damping via the integrated high-performance solenoid valve even while riding.
* The ACE function (Actively Controlled Electronic Suspension) is the centerpiece of this suspension. It allows extreme influences on the suspension to be compensated within milliseconds. The influence of ACE can be adjusted in 5 levels, depending on the desired level of "direct feedback".




In case you have mounted a larger tank on your motorcycle than the original one or have made modifications for additional luggage bags, adaptations can be made. We adapt the shock absorber tube by means of a spring with a higher damping ratio individually to your requirements. Please use our suspension test form and send it back to us after completion.

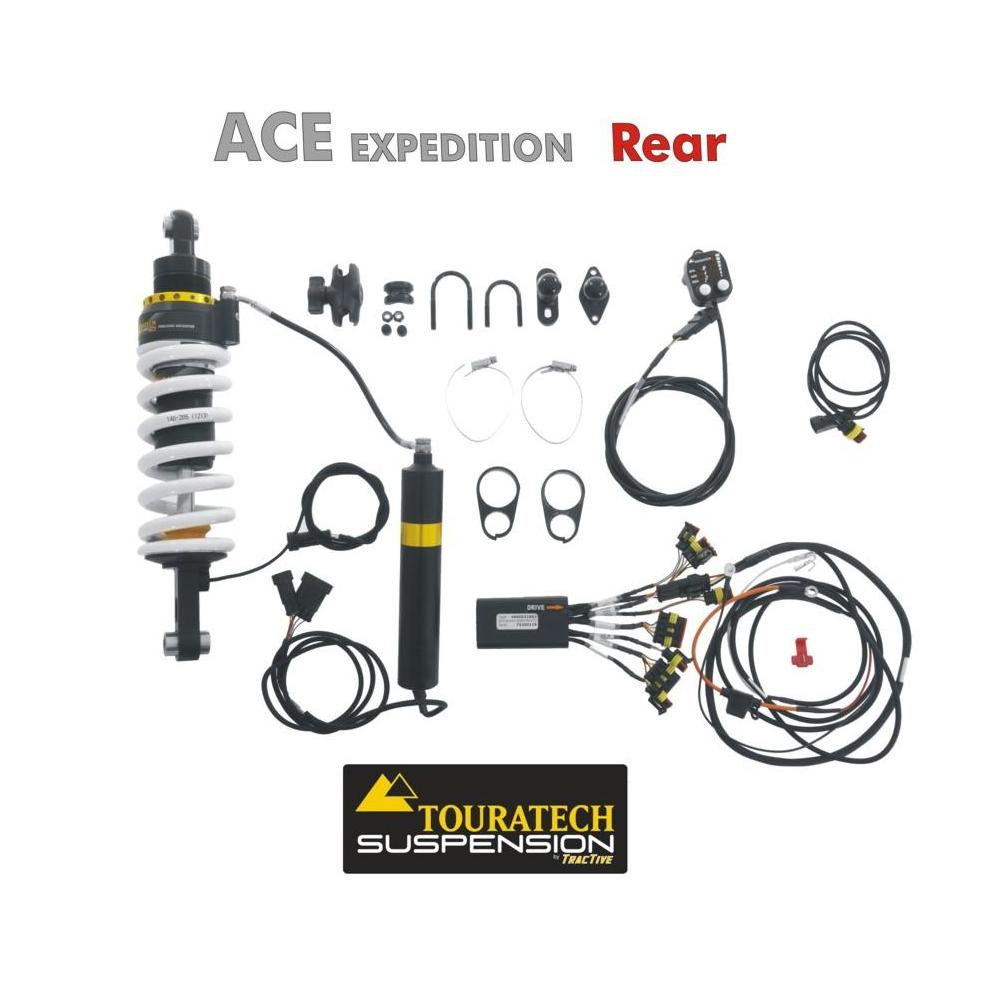

Scope of delivery Expedition set:
- Suspension tube Touratech Suspension ACE REAR (EPA/DDA/ACE)
- Ready to install with remote control, wiring and installation kit
- Manual (DE/EN) (IT, FR, ES for download)

Do you have any further questions? We will be happy to advise you personally.
