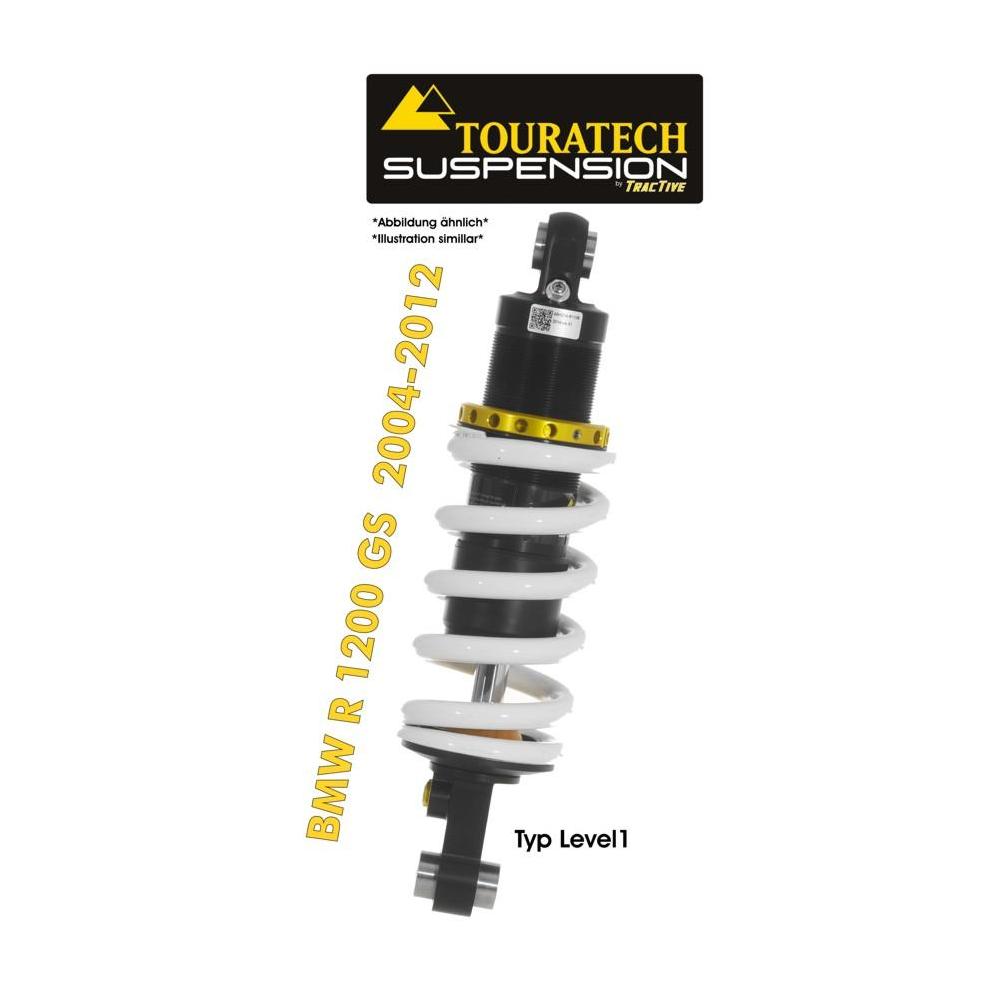

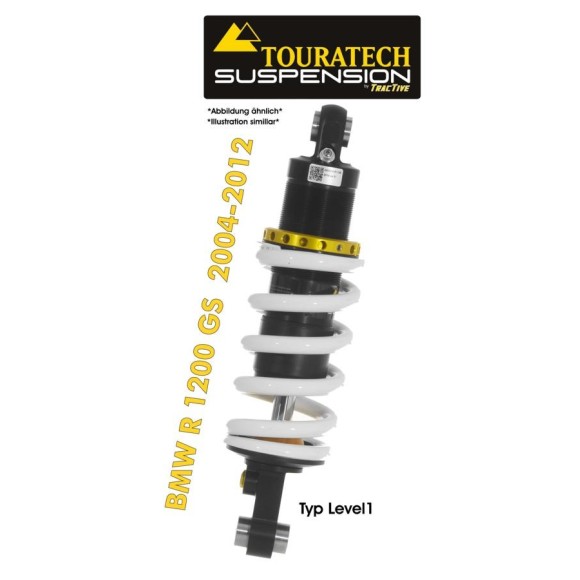

Rear suspension shock absorber for BMW R1200GS (2004-2012) model *Level1*

This shock tube is the right choice for normal trips with the BMW R1200GS. This shock tube model offers a large adjustment range and large reserves for the demands of motorcycle touring. The split-plunger construction and fine-tuned damping allow for more precise balancing and tuning than with the motorcycle manufacturer's standard components. To adapt to the load, the spring pre-tension can be adjusted to the size of the luggage with the adjustment tool. The damping setting of this Level1 shock absorber tube allows you to influence the level of traction and pressure as necessary to be able to apply your personal riding comfort requirements to the shock absorber tube.


The main features in brief:
=> The shock absorber tube has been configured for the BMW R1200GS based on our experience and is set ready to ride.
=> The parameters are: vehicle weight / shock tube articulation / constructional peculiarities / test rides.
=> The shock tube named here has been designed for a driver up to 100kg including luggage.
=> All suspension solutions should be adjusted to the front and rear of the motorcycle.
=> The suitable component for the front of the BMW R1200GS is:
=> Suspension shock absorber tube Touratech *front* for BMW R1200GS from 2004 model *Level1* 01-044-5875-0
=> Replacing only one component does not result in optimum riding behavior.



The equipment fitted here with its adjustment options is sufficient if the suspension has to adapt to different load conditions only in exceptional cases.

Properties of the suspension damper tube Touratech Level1:
+ The damper tube housing is made of aluminum.
=> This keeps the weight as low as possible.
+ Special seals with low friction are installed.
=> This results in very low wear and long service life of the shock absorber tube.

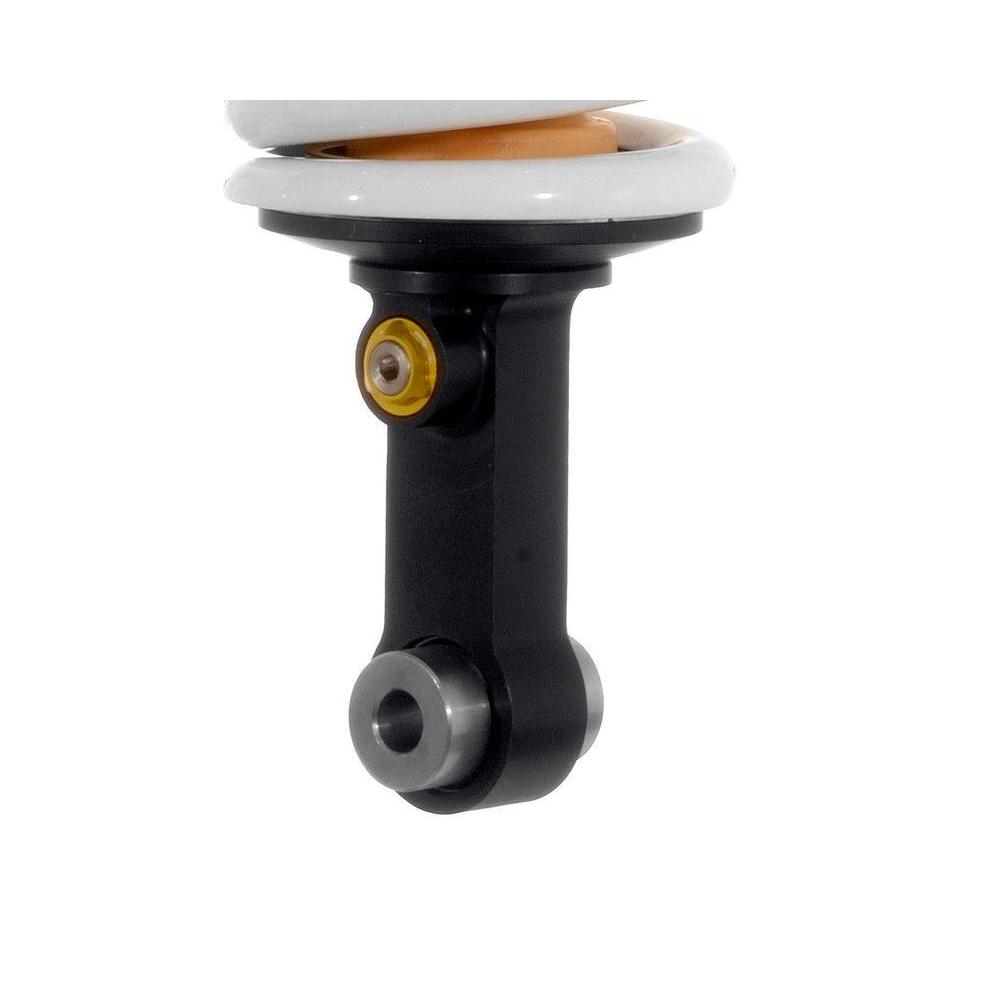

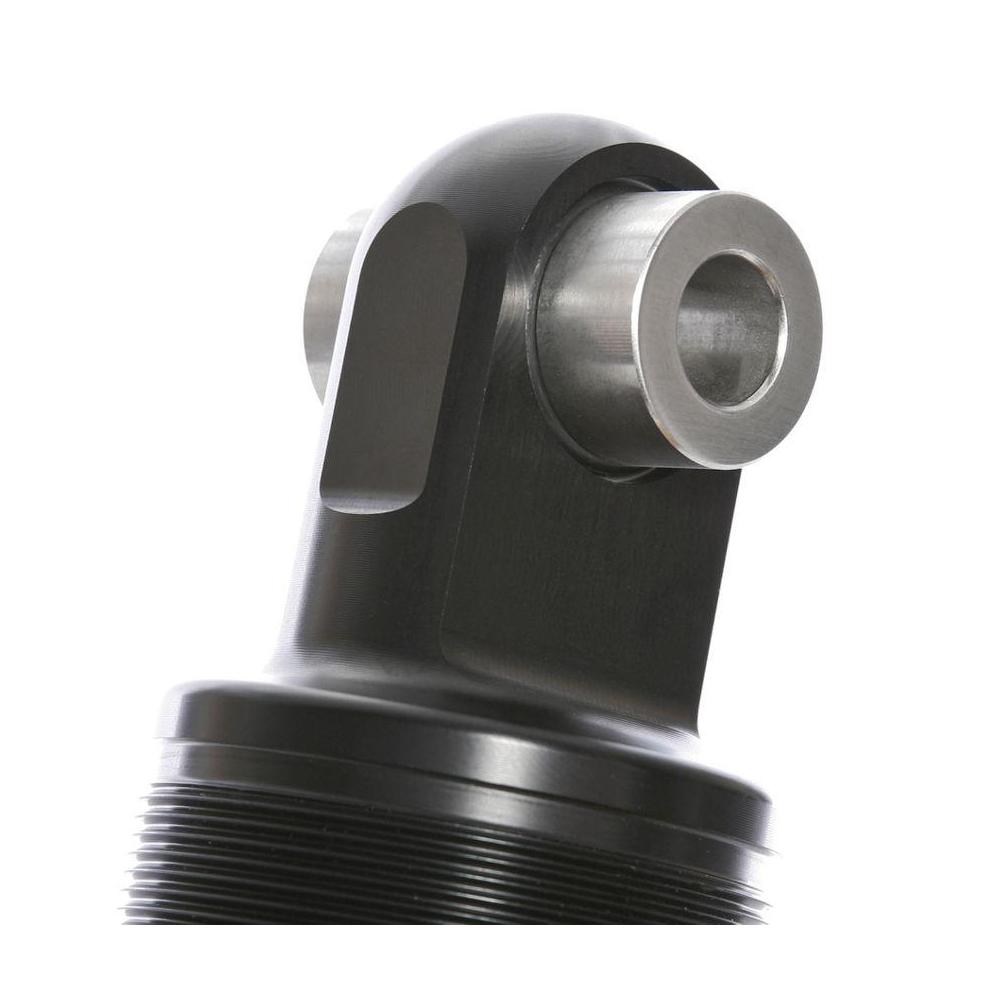

+ Steel bushings for the clamping bolts are installed in the eye of the shock absorber tube.
=> This results in a stable, backlash-free seating of the clamping bolt even under the highest loads.
+ All elements and components are designed for intensive use with heavy touring motorcycles.
+ Shock absorber settings have been developed according to the experiences and requirements of Touratech.
=> The experiences and many kilometers of travel of the Touratech Race-Team have been taken as a basis.
+ Separating piston construction. Thus oil and nitrogen damping fluids can act separately.
=> Good reaction of the shock absorber tube.
=> High and precise damping performance, even at very high damping frequencies (bad roads or tracks).
=> Improved cooling of the shock absorber tube.
=> Minimal restrictions on the mounting position of the shock absorber tube on the motorcycle.
+ QR barcode on the shock tube with individualized shock tube information.
=> This provides easy access to shock tube-specific information when scanning with the smartphone.
=> Information on the basic setting of the shock tube always accessible. Reset option in case of an incorrect setting.



In case you have mounted a larger tank on your motorcycle than the original one or have made modifications to
additional luggage bags, adaptations can be made. We adapt the shock absorber tube
by means of a spring with a higher damping ratio individually to your requirements. Please use our suspension test form and send it back to us after completion.

If you have any further questions, we will be pleased to advise you personally.
