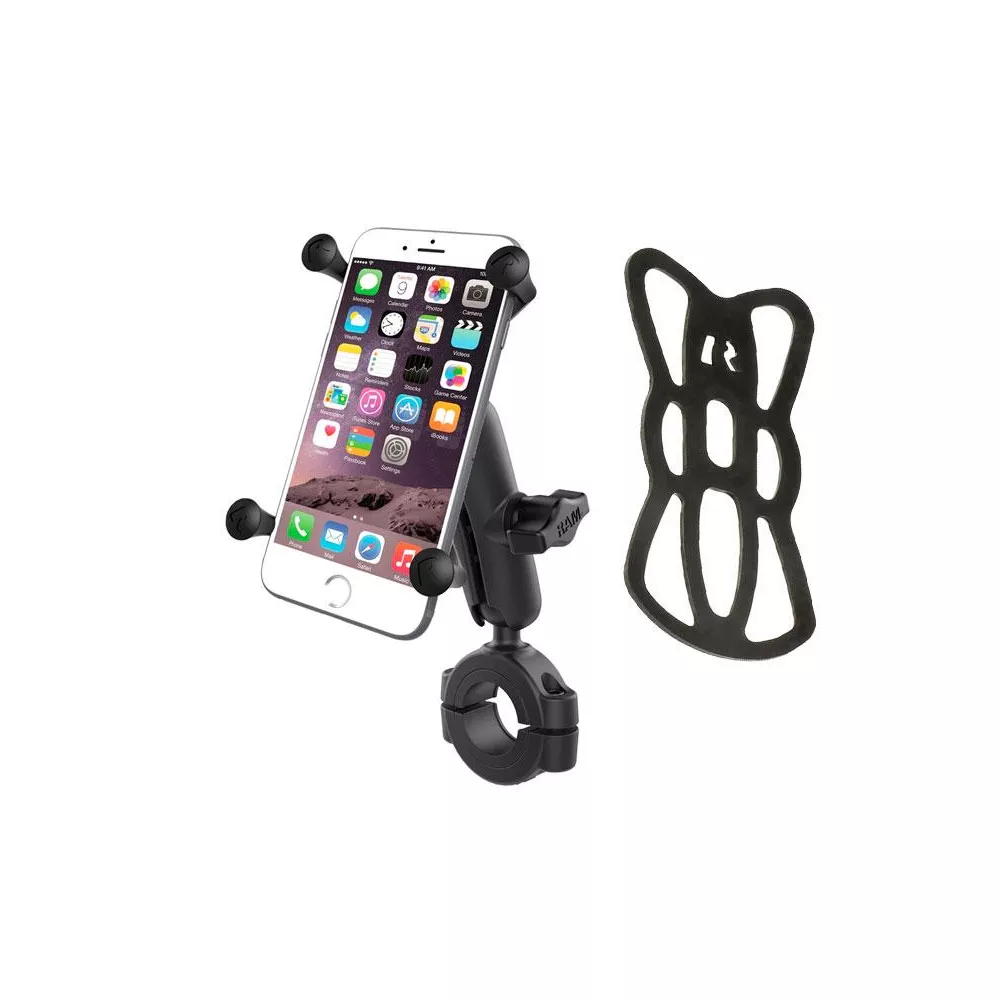

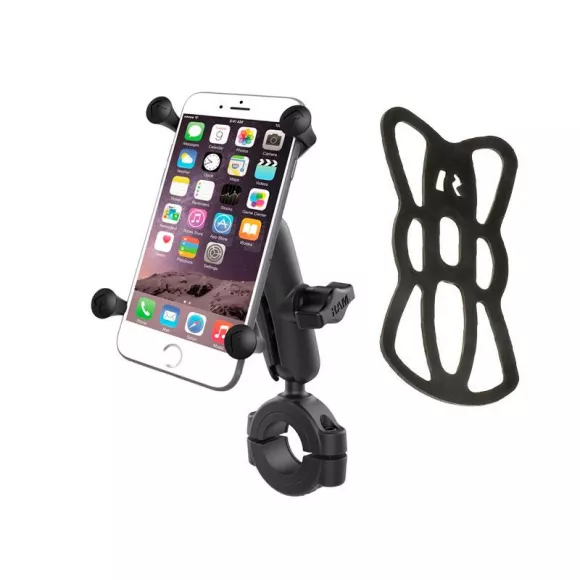

RAM® X-Grip® universal phone holder with handlebar clamp kit and X-Grip® cradle for larger smartphones

The RAM-B-408-112-15-UN10 kit consists of a 28.5-38 mm bar anchor, a B-series connecting arm and a universal holder for smartphones over 5.5 inches RAM-HOL-UN10B from the X-Grip series. Included in this kit is the hardware that allows it to be attached to 28.5 to 38 mm diameter rods.

The kit is designed with a patented ball-and-socket system with adjustment points at both ends of the arm, allowing for varied adjustment and wide viewing angles.

RAM's rubber-coated ball design dampens shock and vibration, helping to extend the life of your device.

The X-Grip mount offers a clean, smart design with four gripping tabs that offer great holding power without hiding your phone behind foam or plastic pads. The spring-loaded mount expands and contracts, allowing for a customized smartphone fit.

The X-Grip includes a rubber device grip recommended for outdoor use. It is compatible with smartphones and other devices that fit the dimensions listed below:

Minimum width = 44.4 mm (Minimum height = 139.7 mm)
Maximum width = 114.3 mm (Minimum height = 82.5 mm)
Depth: 22.2 mm.

Material: marine aluminum and zinc-plated steel.

Components:

RAM-B-201. Connection arm 93 mm.
RAM-B-408-112-15. Anchoring bar 28.5-38 mm.
RAM-HOL-UN10B. Smartphone holder + 5.5″.

Attachment: handlebars and bars 28.5-38 mm.

Arm length: short: 61 mm, standard: 93 mm.

B series: 25.4 mm (1″) ball
