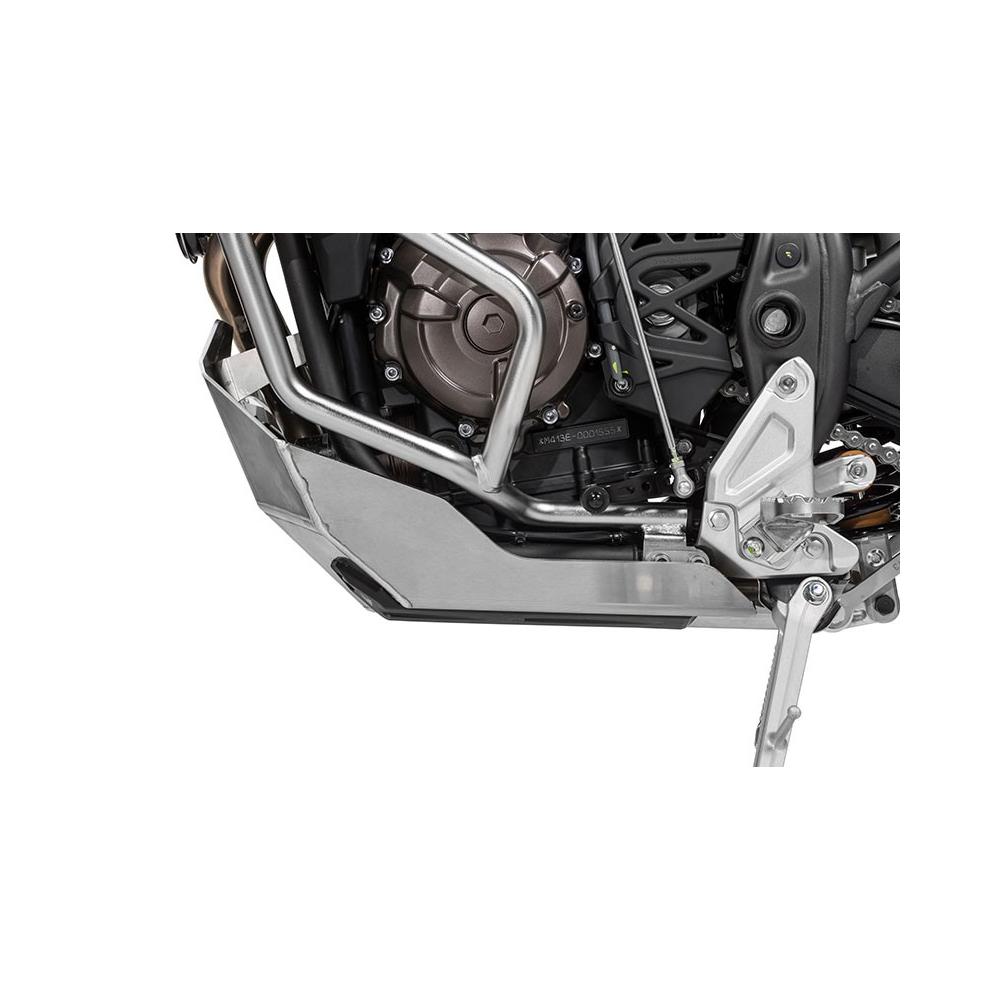

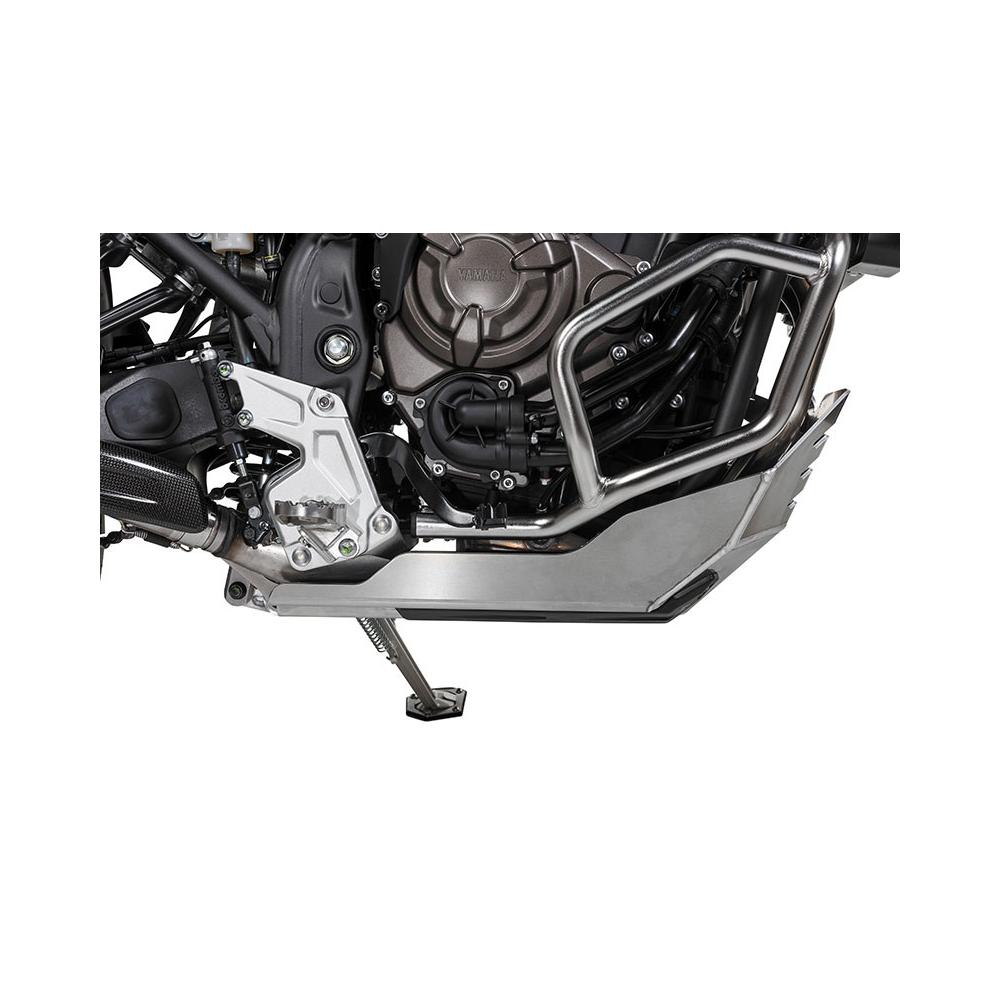

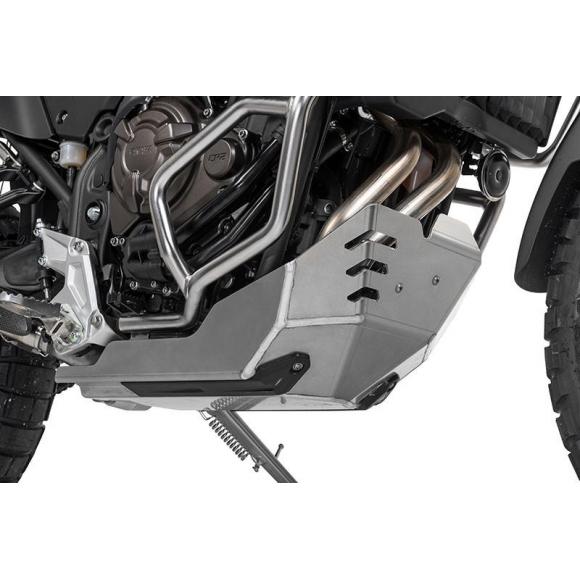

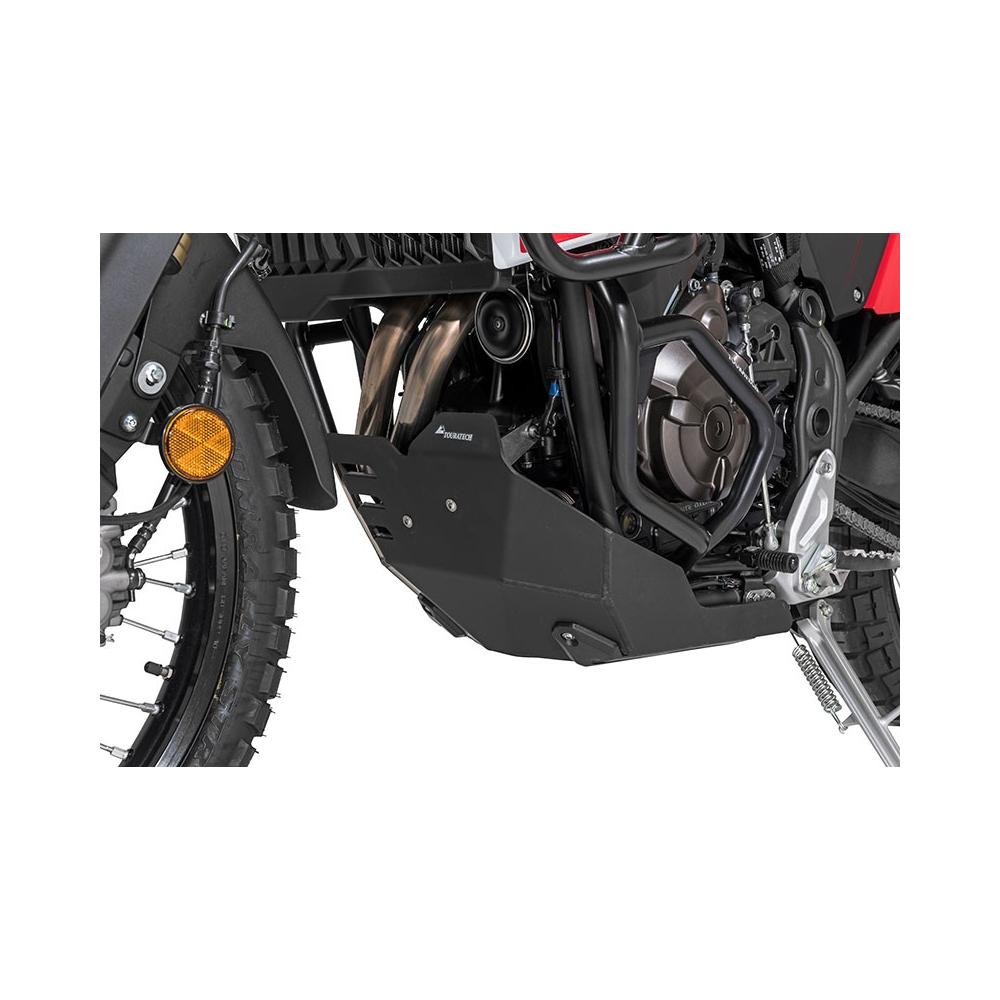

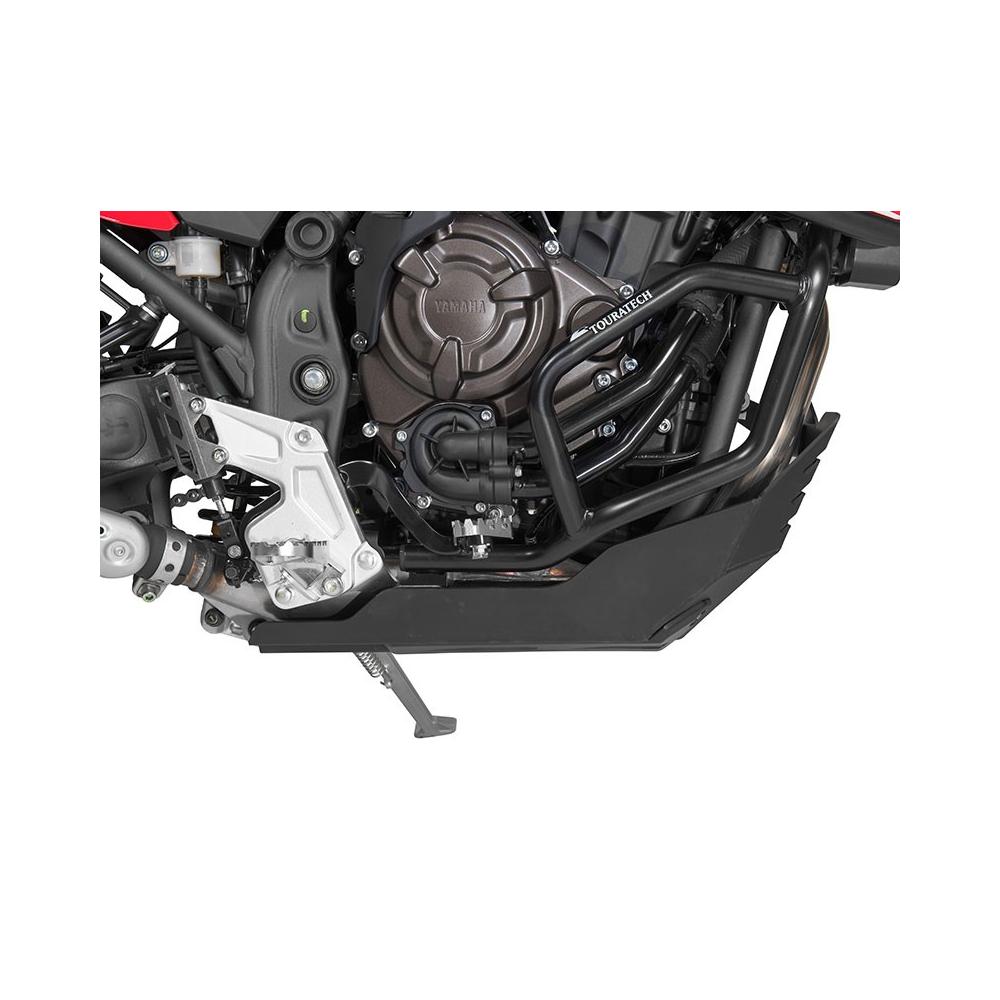

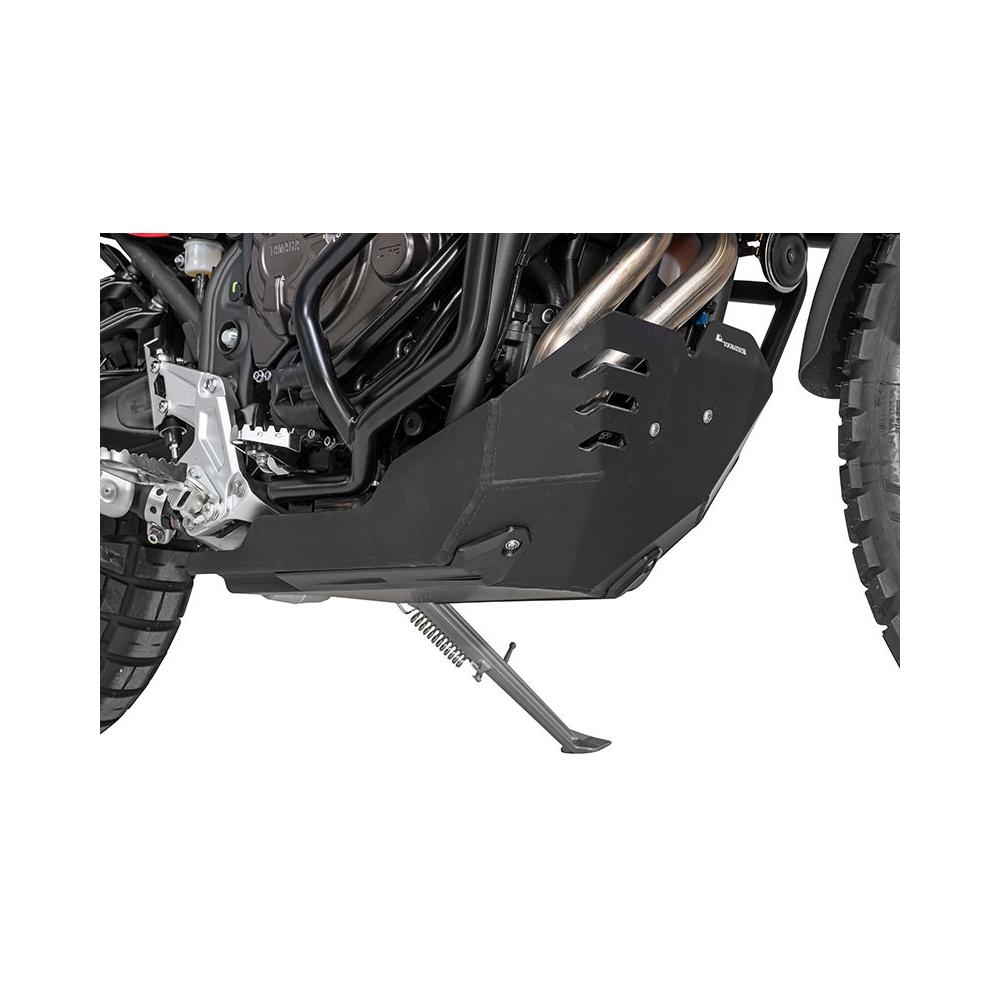

Crankcase cover "Expedition" for Yamaha Tenere 700.

The multi-profile recesses in the 4 mm thick aluminum base plate ensure maximum stability. In addition, in the event of an impact, the force is distributed over a large area delimited by 8 bolting points thanks to the additional 4 mm stainless steel bottom plate attached to the engine. These two plates do not limit the lower ground clearance.

The base of the Expedition engine cover is a 4 mm stainless steel reinforcement plate that is designed to absorb and disperse impact forces by joining solid mounting points on the aluminum engine cover and the engine

The next level of protection comes from the 4 mm heavy-gauge aluminum skid plate, designed with corrugated channels for maximum strength and rigidity. Mounting bolts are recessed into the channels for added protection and ease of service.

The Expedition cover is finished with high-strength, fiber-reinforced polyamide-nylon sliders that absorb shock and provide a sliding surface to negotiate obstacles. The rails also protect the bolt heads from rocks and other terrain hazards.

The Expedition engine cover from Touratech offers unprecedented protection for your Tenere's engine. The heavy-gauge stainless steel mounting plate absorbs impacts while supporting the oversized 4mm oil pan, which has integrated polyamide-nylon rails that absorb impacts, protect bolt heads and provide a sliding surface for overcoming obstacles.

Not compatible with Yamaha's OEM center stand. Our RallyeForm skid plate is compatible with center stands.

Product Features Expedition engine protection for Yamaha Tenere 700:

✓ 4mm aluminum construction with stainless steel reinforcement.

✓ Does not work with center stand.

✓ Mounting screws are protected.

✓ Corrugated channel shape for maximum strength and protection.

✓ Ultra-strong stainless steel subassembly absorbs impact force.

✓ Low profile design maximizes ground clearance.

✓ Removable polyester sliders absorb impact, protect bolt heads and provide a sliding surface.
