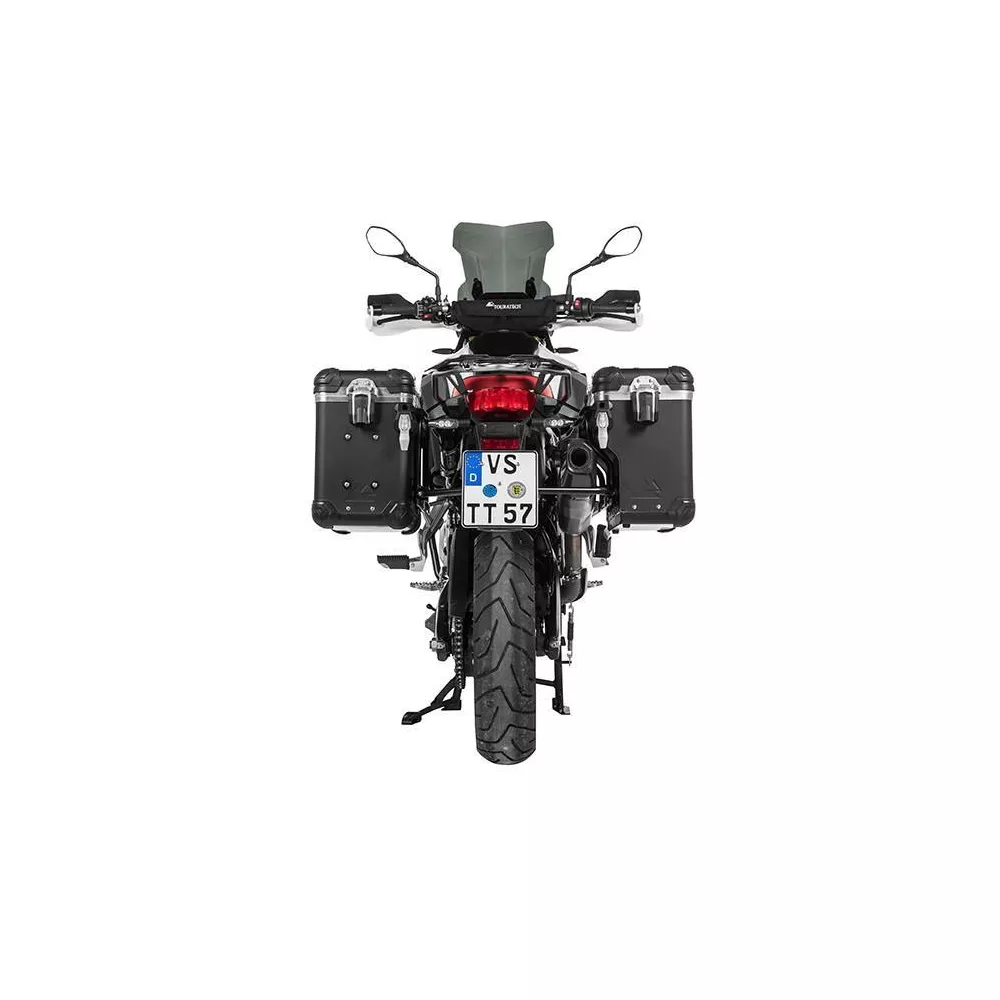

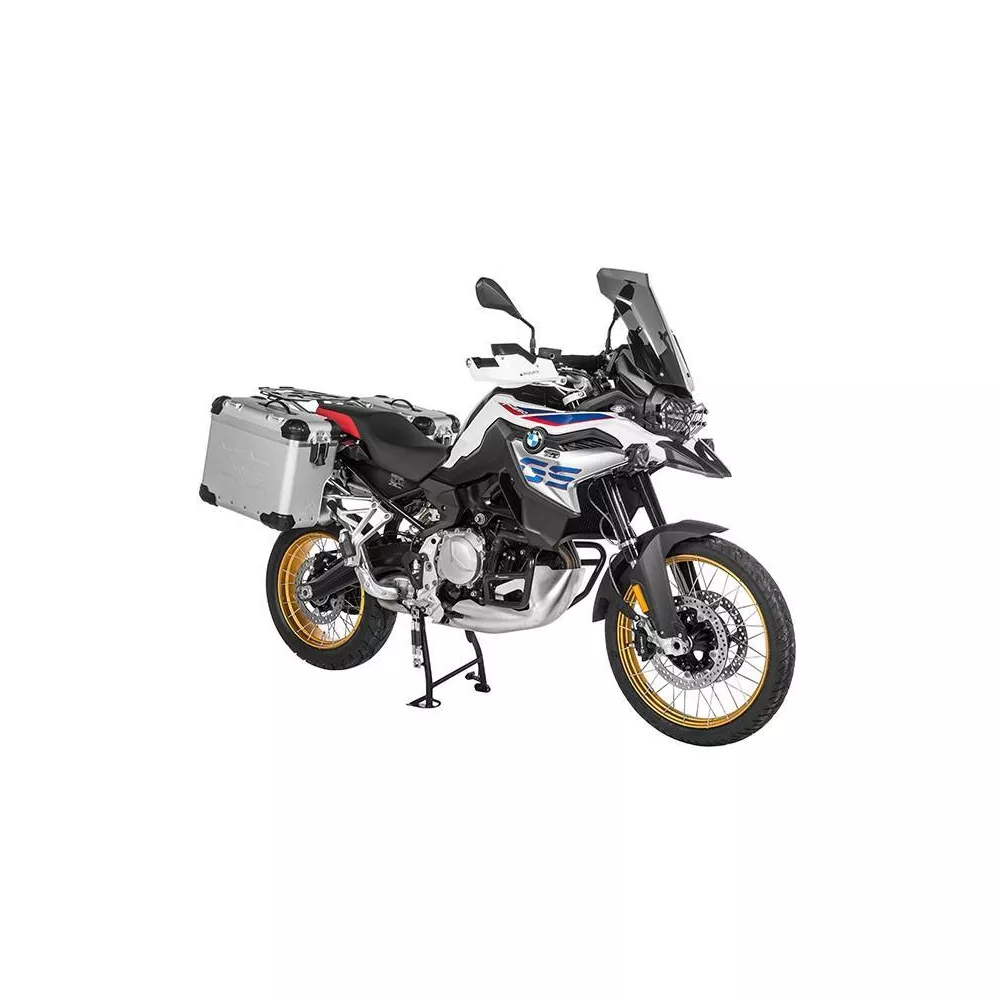

Zega EVO X Case System for BMW F750GS/ F850GS/ F850GS ADV

The zega EVO 'X' case system is a special version from zega EVO system fastening system that offers a exhaust cutout on the right side. This allows the use of panniers with the same dimensions and capacities on both sides, while reducing the overall width of the bike with the panniers on. This providesincreased storage capacity and symmetrical appearance, in addition to the other features that make Zega EVO the market leader in motorcycle hard cases.

The Zega Evo X combines the robustness time-tested and proven and many tests with a extra comfortable handling -thanks to a completely new fastening system. The Zega Evo is attached to the luggage carrier with aabsolute stability, even when driving on off-road tracks! Thus, it is possible to combine aoptimal ergonomics with absolute comfort, without having to compromise on reliability.

The rounded contours of its gripping systems conform to your fingers and allow the release mechanism tois easy to operate allowing for a simple and smooth case attachment/detachment motion. Simply slide the hooks into your motorcycle's luggage rack, push the case all the way in and close the lever to ensure proper attachment of the case. To remove it from the bike, simply pull the clamping lever and lift the case out of its holder. The mechanism also works under difficult conditions: dirt, sand, mud, etc.

The aluminum cases of Touratech, the case is composed of 3 parts that make up the entire case. These are: the body, the lid and the base, which is joined to the case walls by rivets and a seal that makes them totally watertight. They are not welded, but have been manufactured as a single unit single 1.5 mm aluminum plate thickness in the body, lid and base of the case. This feature, withthe absence of welding points gives the side case total strength and durability.

The solid connection between the casing and the bottom is secured by special waterproof rivets. The lid features a tongue and groove profile with aobintegrated silicone sealing which guarantees an absolutely watertight seal.

The cover and the base are now manufactured with adeep drawing manufacturing method,eliminating welded seams. The body and base are secured by tested stainless steel rivets and sealed with silicone gaskets. The plastic side corners on the Zega PRO and Zega EVO models are attached to the outside of the case, unlike other models in the sector, in whichthe corners are parts of the case structure.

In the new cover sealsThe widely accepted hinge function has been retained, which enables thelidcan be opened from both sides or even removed completely.

Thenew development ventilationEnsures that the case is not subjected to as much pressure when the altitude changes. This allows you to open a closed case in a valley even when passing high altitude mountain passes.

The Zega Evo is already equipped with practical fixing brackets for accessories. Therefore, you can easily attach the special ZEGA Evo accessory brackets without having to drill holes in your new cases.

It hasa connecting cable from the inner wall to the suitcase lid that secures the suitcase lid to prevent it from getting lost. This cable can be easily removed, if desired.

Like their predecessors, the consolidated stainless steel retaining rings are fitted as standard on the lid to securely attach special pannier bags or other objects to the Zega Evo.

The suitcase is easy to transport thanks to its carrying handle, made of nylon industrial, facilitating the transport of the suitcase.

As for the finish, the Zega EVO cases from Touratech is available atsilver anodized and black anodized. This is an electrochemical process, whichprevents oxidation of the material,And therefore the ugly gray stains that can occur on aluminum as a result of oxidation.

To this process, some additives are added to color the material. In contrast to surface painting, theby changing the color of the material, the surface is much more resistant to the small scratches that can easily be seen on natural aluminum or black painted cases.

Atsilver or black anodized, the new Zega Evo once again sets a new design benchmark among high-quality luggage solutions. The newly designed rounded plastic corners are not only a decorative element. In the event of an accident, in addition to protecting the case itself, they also protect the rider.

Technical Characteristics of the Zega EVO X Case System

Quick mounting for easy assembly and disassembly

Touratech improved ergonomics and aestheticsOf the Zega Evo side cases by means of thedevelopment of a new die-cutting techniqueThatcreates rounded contours, which makes therelease mechanism is easy to put on and take off,And as a result we have greater convenience. You simply slide the hooks into the luggage carrier of your vehicle BMW, push the case all the way in and pull the lever to secure the case

Heavy-duty luggage carrier

The Zega EVO comes withhigh-strength stainless steel pallet holder,Which have earned a reputation for durability from travelers around the world. With 18 mm tubes and arobotically welded construction,These Zega Evo racks follow a long tradition of strength and durability. The system comes with all the hardware and everything needed for installation, all in one package.

Storage in the lid

ThestorageadditionalOn the top of the cover is facilitated by thealuminum lashing loopsForged in theFour cornersOf the lid. The internal storage, inside the lid, is possible thanks to thetie-down loops integrated into the corners,to takes advantage of the space so undervalued in most saddlebags.

Waterproof

ThelidHas aedge aluminum resistantTongue and groove with an integrated silicone seal that makes a completely waterproof seal. The case is equipped with a waterproof vent that relieves pressure when changing elevation, such as when going over a mountain pass.

Style

Anothercharacteristic feature of the Zega Evo is its new embossed shape,following the style of the brand Touratech. Thecorner protectionHas also beenrenewedFor a modern look with aimproved ergonomic gripAnd an off-motorcycle riding feel.

Prepared for accessories

TheMounting pinsOf integrated accessories comepreinstalledWith the Zega Evo, so that they can beAdd accessories without drillingThe suitcases. TheLegendary range of accessoriesFor aluminum cases of Touratech expands its storageFor fuel cans, water bottles and a number of other options.

Double hinged closure

You can open the suitcasefrom any angleforfacilitate accessOr even remove the cover with thedouble-hinged latches. The Zega Evo system comes with aremovable strapWhich is used to avoid losing a cover while in operation.

✓Aluminum sheet of 1.5 millimeters thick.

✓Available in silver or black anodized version.

✓Riveted body and base.

✓Recessed cover and base.

✓Robust cover profile with silicone gasket.

✓Impact-resistant corner reinforcements.

✓Recessed webbing carrying handle.

✓New ergonomic fasteners.

✓Additional hinge function latches.

✓New easily removable lid safety strap.

✓Improved ventilation.

✓Completely new mounting and locking mechanism.

✓Extension of the equipment with fastening rings.

✓Quick-fit convenience for easy attachment or detachment of panniers.

✓The locking design secures suitcases and contents to prevent theft or tampering.

✓Easy-to-use latches with ergonomic press-forged release mechanism.

✓Accessory-ready with pre-installed attachment pins for a variety of mountings.

✓Modern design with embossed style accents that also add strength.

✓Easy access lid hinged on both sides or removable.

✓Waterproof storage with deep channel aluminum rim and silicone gasket.

✓Ergonomic handles for easy transport off the bike.

✓Two sizes available 38/38 and 45/45 liters.

Total width: 94 cm (38L) and 102 cm (45L).
